| Material: | HT250 | Name: | Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel |
|---|---|---|---|
| Type: | Hollow Type | Flatness: | 1 Grade |
| Size: | As Clients Request | Surface Finish: | Hand Scrap |
| High Light: | large surface plate,iron angle plates |
||

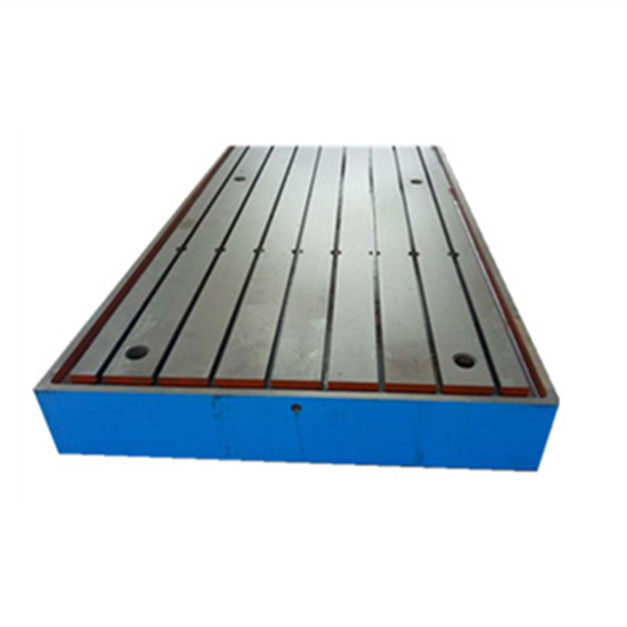

Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel
Features
Close grained, stress relieved cast iron
Precisely finished by planing and hand scraping
Deep cross ribbed construction maintaining rigidity & accuracy
Accuracy to standard DIN876/1, GB/T22095-2008
Includes lifting handles & cover for protection
T-slots made according to DIN650.
Materials and Processing:
(1) The material of our surface plate/table is cast iron HT200-350
(2) Working surface hardness is HB170-240
(3) Low inaccuracy error and good in grinding resistance.
Usage:
Cast Iron Surface Plates provide a precision reference for spotting, tool making, inspection of parts, checking accuracy of other surfaces and for many types of gauging and marking out operations
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| specification(Lx W)mm | precision grade | |||
|---|---|---|---|---|
| 0 | 1 | 2 | 3 | |
| flatness tolerance (um) | ||||
| 200X200 | 3.5 | 7 | 14 | 27 |
| 300X200 | 4 | 8 | 15 | 30 |
| 300X300 | 4 | 8 | 15 | 30 |
| 300X400 | 4 | 8 | 16 | 32 |
| 400X400 | 4.5 | 8.5 | 17 | 34 |
| 400X500 | 4.5 | 9 | 18 | 35 |
| 400X600 | 5 | 10 | 19 | 37 |
| 500X500 | 5 | 10 | 19 | 37 |
| 500X600 | 5 | 10 | 19 | 39 |
| 500X800 | 5.5 | 11 | 21 | 43 |
| 600X800 | 5.5 | 11 | 22 | 44 |
| 600X900 | 6 | 11.5 | 23 | 46 |
| 1000X750 | 6 | 12.5 | 25 | 50 |
| 1000X1000 | 7 | 13.5 | 27 | 54 |
| 1000X1200 | 7 | 14 | 29 | 58 |
| 1000X1500 | 8 | 16 | 32 | 63 |
| 1000X2000 | 9 | 18.5 | 37 | 74 |
| 1500X2000 | 10 | 20 | 40 | 80 |
| 1500X2500 | 11 | 22.5 | 45 | 90 |
| 1500X3000 | 13 | 25 | 50 | 100 |
| 2000X2000 | 11 | 22 | 44 | 88 |
| 2000X3000 | 13 | 27 | 53 | 106 |
| 2000X4000 | 16 | 32 | 64 | 127 |
| 2000X5000 | 19 | 37 | 75 | 150 |
| 2000X6000 | 43 | 86 | 172 | |
| 2000X7000 | 49 | 97 | 194 | |
| 2000X8000 | 54.5 | 109 | 218 | |
| 2500X3000 | 28.5 | 57 | 114 | |
| 2500X4000 | 33 | 67 | 133 | |
| 2500X5000 | 39 | 77 | 154 | |
| 2500X6000 | 44 | 88 | 176 | |
| 2500X7000 | 50 | 99 | 198 | |
| 2500X8000 | 55 | 110 | 221 | |
| 3000X3000 | 30.5 | 61 | 122 | |
| 3000X4000 | 35 | 70 | 140 | |
| 3000X5000 | 40 | 80 | 160 | |
| 3000X6000 | 45 | 90.5 | 181 | |
| 3000X7000 | 51 | 101 | 203 | |
| 3000X8000 | 56 | 112.5 | 225 | |
| 4000X4000 | 39 | 78 | 156 | |
| 4000X5000 | 43 | 87 | 174 | |
| 4000X6000 | 48 | 96.5 | 193 | |
| 4000X7000 | 53 | 107 | 213.5 | |
| 4000X8000 | 59 | 117 | 235 | |
