| Material: | HT250 | Name: | MANUAL LAPPING PLATE |
|---|---|---|---|
| Type: | Hollow Type | Flatness: | 1 Grade |
| Size: | As Clients Request | Surface Finish: | Hand Scrap |
| High Light: | cast iron measuring plates,cast iron lapping plate |
||

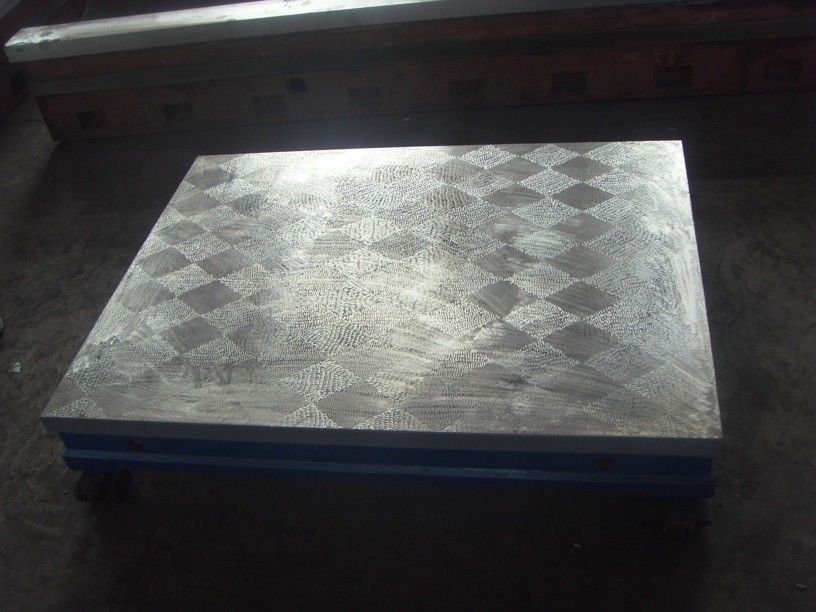

Professional Surface Plate Calibration Customized Manual Lapping Plate
Proportion:2970-3070kg/m3
Compression strength:245-254kg/mm2
Flexible grinding capacity:1.27-1.47N/mm2
Coefficient of linear expansion:4.6×1-6°C
Water absorption: 0.13%
Shore hardness HS, more than 70.
Precision has 000. 00, 0, 1 grade.
It is the ideal tool for drawing line and inspection at precision processing company.
|
Specification Length*width*thickness(mm) |
weight(kgs) | precision Grade(µm) | |||
| 000 | 00 | 0 | 1 | ||
| 200*200*50 | 17 | 1.5 | 3 | 6 | 12 |
| 300*300*50 | 19 | 1.5 | 3 | 6 | 12 |
| 400*300*70 | 25 | 1.5 | 3 | 6 | 12 |
| 400*400*70 | 48 | 2 | 3.5 | 6.5 | 13 |
| 630*400*100 | 76 | 2 | 3.5 | 7 | 14 |
| 630*630*100 | 155 | 2 | 4 | 8 | 16 |
| 800*500*130 | 156 | 2 | 4 | 8 | 16 |
| 1000*630*130 | 284 | 2.5 | 4.5 | 9 | 18 |
| 1000*750*150 | 338 | 2.5 | 5 | 9 | 18 |
| 1000*1000*150 | 450 | 2.5 | 5 | 10 | 20 |
| 1000*1000*200 | 963 | 3 | 6 | 12 | 24 |
| 2000*1000*100 | 1200 | 3.5 | 6.5 | 13 | 26 |
| 1600*1600*300 | 2312 | 3.5 | 6.5 | 13 | 26 |
| 2000*1600*300 | 2890 | 3.5 | 7 | 14 | 28 |
| 2500*1600*300 | 3612 | 4 | 8 | 16 | 32 |
| 3000*2000*500 | 9030 | 4.5 | 9 | 18 | 36 |
| 4000*2000*500 | 10240 | 5.5 | 11 | 22 | 44 |
| 6000*2000*700 | 25284 | 7.5 | 15 | 30 | 60 |
