| Material: | Black Granite | Color: | Black |
|---|---|---|---|
| Application: | Industry | Flatness: | 00grade |
| Size: | 2000 X 5000 Mm | Weight: | 15000KGS |
| High Light: | granite inspection plate,granite angle plate |
||

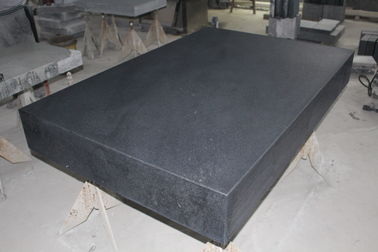

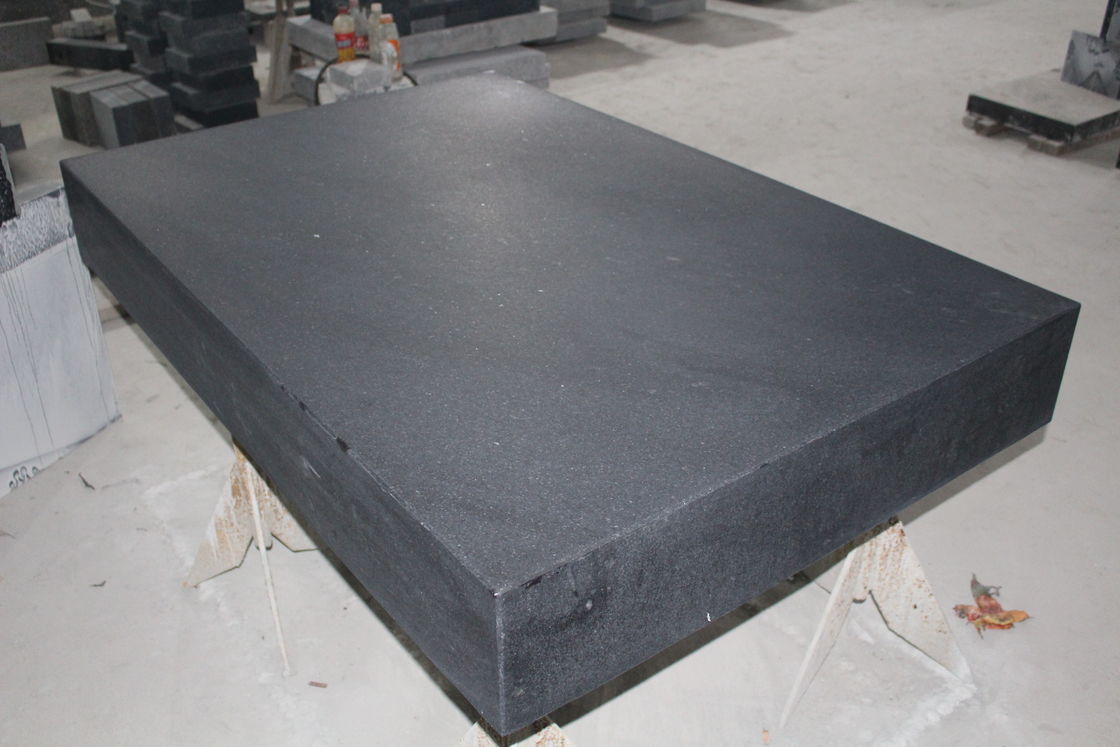

00 Grade Flatness Granite Surface Plate Rust Proof Confirm To Din 876/0
High precision granite surface plates can provide an accurate reference plane for work inspection and for work layout. The high degree of flatness, quality and workmanship also make them ideal bases for mounting sophisticated mechanical, electronic and optical gauging systems.
High hardness granite inspection surface plate is in black color with bright, homogeneous structure,good stability, high hardness, anti-rust and chemical-resistance.
Material: granite
Standard: GB/T 20428-2006
Specification: The maximum workability is 3000mm in width and 6000mm in length or customize (special size is acceptable following customers’ requirement)
Surface: T-slots, dovetail-shaped slots, holes, etc.
Hardness of the working surface: HS70
Surface treatment: ground finish
Precision grade: 00-1
Packaging: wooden box
Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
|
Specification |
Weight (kgs) |
Precision Grade (μm) |
|||
|
000 |
00 |
0 |
1 |
||
|
300 × 200 × 50 |
17 |
1.5 |
3 |
6 |
12 |
|
300 × 300 × 50 |
19 |
1.5 |
3 |
6 |
12 |
|
400 × 300 × 70 |
25 |
1.5 |
3 |
6 |
12 |
|
400 × 400 × 70 |
48 |
2 |
3.5 |
6.5 |
13 |
|
630 × 400 × 100 |
76 |
2 |
3.5 |
7 |
14 |
|
630 × 630 × 100 |
155 |
2 |
4 |
8 |
16 |
|
800 × 500 × 130 |
156 |
2 |
4 |
8 |
16 |
|
1000 × 630 × 130 |
284 |
2.5 |
4.5 |
9 |
18 |
|
1000 × 750 × 150 |
338 |
2.5 |
5 |
9 |
18 |
|
1000 × 1000 × 150 |
450 |
2.5 |
5 |
10 |
20 |
|
1600 × 1000 × 200 |
963 |
3 |
6 |
12 |
24 |
|
2000 × 1000 × 200 |
1200 |
3.5 |
6.5 |
13 |
26 |
|
1600 × 1600 × 300 |
2312 |
3.5 |
6.5 |
13 |
26 |
|
2000 × 1600 × 300 |
2890 |
3.5 |
7 |
14 |
28 |
|
2500 × 1600 × 300 |
3612 |
4 |
8 |
16 |
32 |
|
3000 × 2000 × 500 |
9030 |
4.5 |
9 |
18 |
36 |
|
4000 × 2000 × 500 |
12040 |
5.5 |
11 |
22 |
44 |
|
6000 × 2000 × 700 |
25284 |
7.5 |
15 |
30 |
60 |
