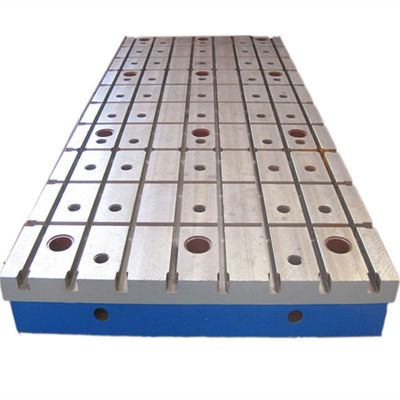

Material: HT250 Name: Work Bed Table Cast Iron T-Slot Base Plate With Tee Nut
Type: Hollow Type Flatness: 1 Grade
Size: As Clients Request Surface Finish: Hand Scrap
High Light:

t slot angle plate

,

aluminium t slot plate

Work Bed Table Cast Iron T-Slot Base Plate With Tee Nut



T- slots are machined according to DIN 650 , with popular metric or SAE sizes . T-slots can be machined to width tolerance H7 or H8 at extra cost. Depth of T- slots can also be increased in cases of extremely high pull- out loads. Casted pockets, as required, are provided along the T- slot enable inserting and removal of T- nuts. T- slots can be machined in longitudinal and transversal direction depending on your requirements as well as threaded holes and fitting holes.



LEFT: Base plate with crossed T-slots, joints and caps sealed. Can be re-arranged in many different configurations (T-shape, 2 separate fields etc). Plate mounted on rubber vibration isolators with 1 st natural frequency around 7 Hz. Protective wax still applied to the plate surfaces. Customer: MTS Powertrain, Ann Arbor, MI.



Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570
