| Material: | Iron | Function: | Adjust |
|---|---|---|---|
| Color: | Yellow | Use Range:: | Machine Tools |
| Weight: | 2KG | Size: | M16 |
| High Light: | anti vibration leveling pads,plastic coolant hose |
||

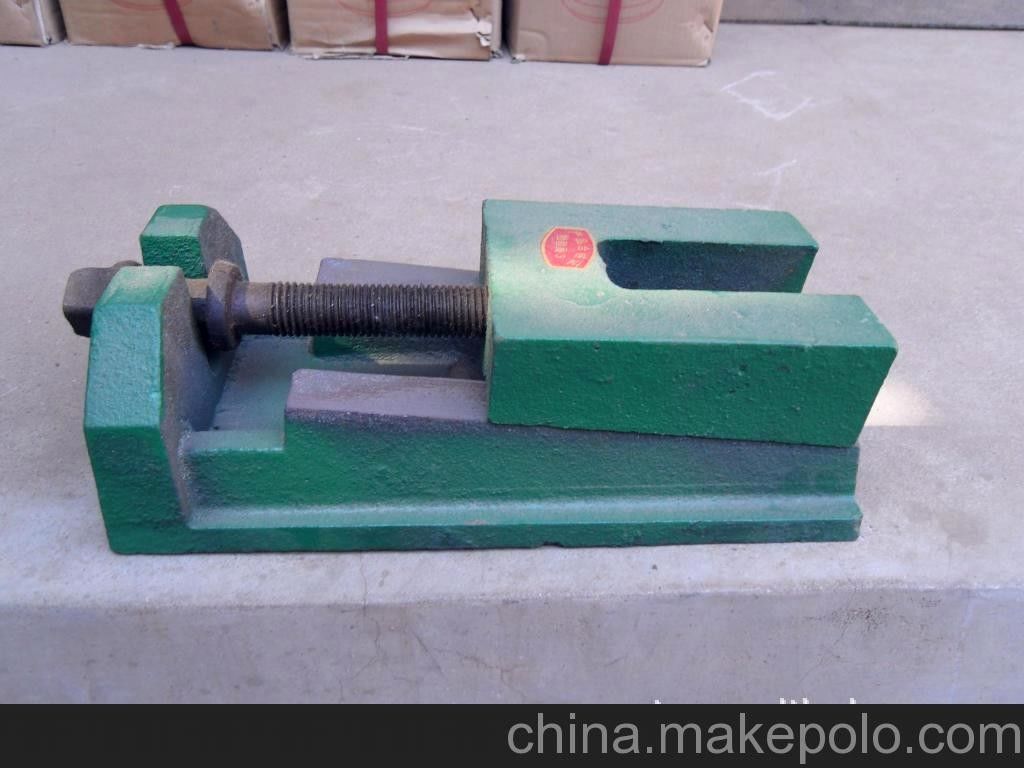

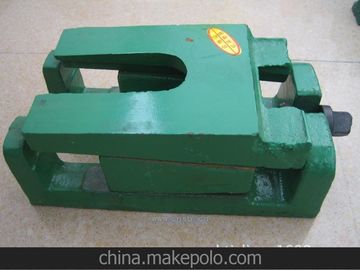

Adjustable Anti-vibration Leveling Pads Machine Mounts For Machine Tool
It isolates the vibration and shock of the machine from the floor and reduces the influences from other machine. It eliminates the noise transferred from the floor or due to temperature resonance of building.
Machine are stationary on the floor without anchors. It keeps the machine in its position,therefore the installation cost and time can be greatly saved. The layout can be easily changed to improve the productivity. Machines can set up on the second floor.
The anti-vibration machine mounts can be large adjusted ,easily and fast.
Elastomers is make of Nitvile rubber compound,it can resist oil and refrigerant.
| Ser No. | Specifications (mm) | Load per mount (kg) | Adjustment |
| 1 | 135 x 70 x 45 | 400 | 14 |
| 2 | 160 x 80 x 50 | 600 | 14 |
| 3 | 200 x 100 x 55 | 800 | 16 |
| 4 | 220 x 110 x 60 | 1000 | 16 |
| 5 | 240 x 130 x 70 | 1500 | 16 |
| 6 | 260 x 140 x 70 | 1600 | 18 |
| 7 | 280 x150 x80 | 1800 | 20 |
| 8 | 300 x150 x80 | 2000 | 20 |
| 9 | 420 x200 x120 | 8000 | 30 |
