| Type: | Conveyor System | Material: | Carbon Steel |
|---|---|---|---|
| Function: | Disposal Of Chips | Product Name: | Grain Coal Ash Chip Embedded Scraper Transporter Conveyor |
| Application: | Digital-controlled Machine Tool | Power: | 0.2kw/0.4kw/0.75kw/1kw/1.5kw |
| High Light: | screw type chip conveyor,chip auger conveyor |
||

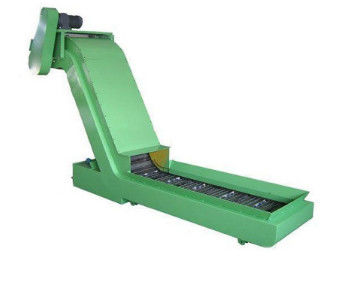

Grain Coal Ash Chip Embedded Scraper Transporter Conveyor
Conveyor systems
A proven conveyor solution for a variety of materials, chip types, and chip
loads. Hinge belts, the most common conveyor type, can be modified to
handle more troublesome waste like tough scrap and heavy parts.
options
BELT DESIGN plain, perforated, dimpled, combo
BELT PITCHES “ (MM) 1.5 (38.1), 2.5 (63.0), 4.0 (101.6), 6.0 (152.4)
CLEATS serrated, flat, inverted "v", custom
INTEGRATED COOLANT TANK
COOLANT FILTRATION
HEAVY-DUTY IMPACT PLATES for heavy scrap or parts
TOP HAT COVER for bundled chips
| Specification | Option | |
| Reduce Speed Motor | 1/4 Hp9 (0.2kw) 1/165 220/380v | Simple CE device of exit |
| pitch Of Chain | R2050 P=31.75 mm | Full Cover CE device of exit |
| Hinged belt width | 175,15-600 (there is one kind of specification every 50mm | Standard emergent stop |
| CE spec standard emergent s | ||
| Chips Holder | One pieces for every six pitch | Various far terminal control boxes |
| Conveyor Speed | 1.2-1.4M/min (50/60 HZ) | Various romote controller cable lines |
| Safety Device | HTL-350-2 | Torque limit device |
| Angle of Conveyor | 60° | Prevent chips roll up device |
