Product Details:
Payment & Shipping Terms:
|
| Material: | Black Granite | Color: | Black |
|---|---|---|---|
| Application: | Industry | Size: | 630 X 400 MM |
| Flatness: | 00 Grade | Weight: | 76 Kgs |
| High Light: | granite inspection plate,granite flat plate |
||

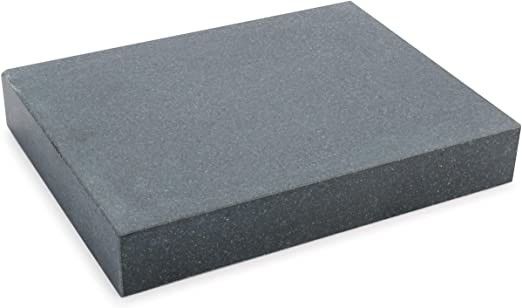

Surface Smooth Granite Inspection Surface Plates Use for Industry
High hardness granite inspection surface plate is in black color with bright, homogeneous structure,good stability, high hardness, anti-rust and chemical-resistance.
Material: granite
Standard: GB/T 20428-2006
Specification: The maximum workability is 3000mm in width and 6000mm in length or customize (special size is acceptable following customers' requirement)
Surface: T-slots, dovetail-shaped slots, holes, etc.
Hardness of the working surface: HS70
Surface treatment: ground finish
Precision grade: 00-1
Packaging: wooden box
| Specification(MM) | Weight(KG) | 00Grade(um) | 0 Grade(um) |
| 300*300*50 | 19 | 3 | 6 |
| 400*300*70 | 25 | 3 | 6 |
| 400*400*70 | 48 | 3.5 | 6.5 |
| 630*400*100 | 76 | 3.5 | 7 |
| 630*630*100 | 155 | 4 | 8 |
| 800*500*130 | 156 | 4 | 8 |
| 1000*630*130 | 284 | 4.5 | 9 |
| 1000*750*150 | 338 | 5 | 9 |
| 1000*1000*150 | 450 | 5 | 10 |
| 1600*1000*200 | 963 | 6 | 12 |
| 2000*1000*200 | 1200 | 6.5 | 13 |
| 1600*1600*300 | 2312 | 6.5 | 13 |
| 2000*1600*300 | 2890 | 7 | 14 |
| 2500*1600*300 | 3612 | 8 | 16 |
| 3000*2000*500 | 9030 | 9 | 18 |
| 4000*2000*500 | 12040 | 11 | 22 |
| 6000*2000*700 | 25284 | 15 | 30 |
