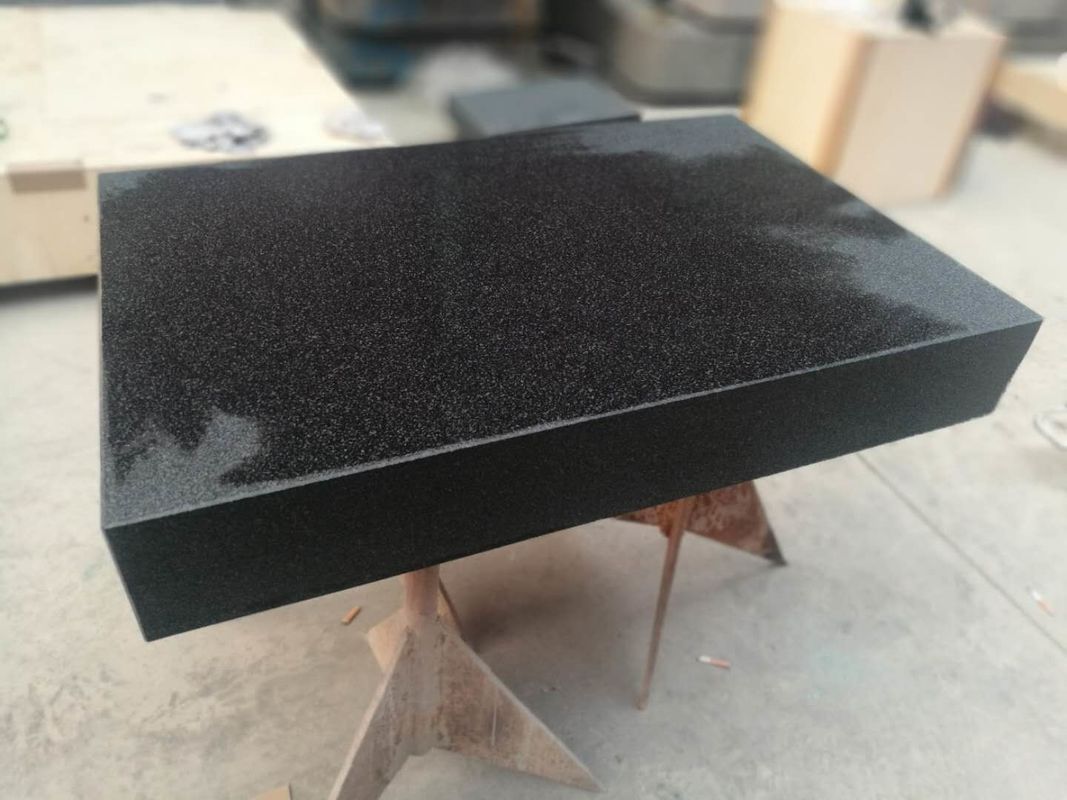

Flat 1000x1000 Granite Surface Table Measurement Tools

I'm Online Chat Now

Flat 1000x1000 Granite Surface Table Measurement Tools

Flat 1000x1000 Granite Surface Table Measurement Tools
Flat 1000x1000 Granite Surface Table Measurement Tools

Large Image :  Flat 1000x1000 Granite Surface Table Measurement Tools

Product Details:
Place of Origin: China
Brand Name: Willing
Certification: CO
Model Number: No.1010
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Color: Black
Application: Industry Flatness: 00 Grade
Size: 1000x1000 X 150 Mm Weight: 450 KGS
High Light:

1000x1000 Granite Surface Table

,

1000 × 750 Granite Surface Table

,

1000 × 630 Granite Surface Table

Flat Granite Surface Table Measurement Tools


The hardness and stability allow accuracies within millionths of an inch. Along with the high accuracies, granite is rust-proof, non-magnetic, abrasive resistant, non wedging, wrap-resistant and easily cleaned. The granite used for surface plates has an excellent distribution of hard quartz which provides a smooth, long-wearing working surface.
Granite surface plates meet or exceed Federal Specifications DIN/876. Final inspection and calibration of every surface plate is accomplished by use of the Auto-Collimeter


Repeatability:

  • Grade "B" Toolroom ± 100 Millionths
  • Grade "A" Inspection ± 50 Millionths



Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:



Grade 000 =1x(1+d/1000)/μm

Grade 00 =2x(1+d/1000)/μm

Grade 0 =4x(1+d/1000)/μm

Grade 1 =8x(1+d/1000)/μm

(d is the length of the diagonal)

Specification
Length × Width × Thickness (mm)

Weight (kgs)

Precision Grade (μm)

000

00

0

1

300 × 200 × 50

17

1.5

3

6

12

300 × 300 × 50

19

1.5

3

6

12

400 × 300 × 70

25

1.5

3

6

12

400 × 400 × 70

48

2

3.5

6.5

13

630 × 400 × 100

76

2

3.5

7

14

630 × 630 × 100

155

2

4

8

16

800 × 500 × 130

156

2

4

8

16

1000 × 630 × 130

284

2.5

4.5

9

18

1000 × 750 × 150

338

2.5

5

9

18

1000 × 1000 × 150

450

2.5

5

10

20

1600 × 1000 × 200

963

3

6

12

24

2000 × 1000 × 200

1200

3.5

6.5

13

26

1600 × 1600 × 300

2312

3.5

6.5

13

26

2000 × 1600 × 300

2890

3.5

7

14

28

2500 × 1600 × 300

3612

4

8

16

32

3000 × 2000 × 500

9030

4.5

9

18

36

4000 × 2000 × 500

12040

5.5

11

22

44

6000 × 2000 × 700

25284

7.5

15

30

60
