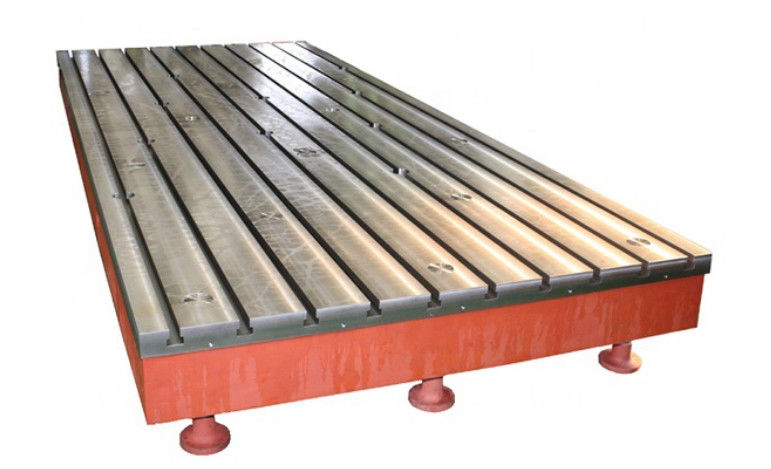

CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates

I'm Online Chat Now

CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates

CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates
CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates

Large Image :  CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden
Delivery Time: 20days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: Grey Iron HT250 Name: Machine Floor Bed Used Cast Iron T Slot Bed Plate
Type: Hollow Type Flatness: 2 Grade
Surface Finish: Maching Finish Loading Weight: As Clients Request
Warranty: 1 Year
High Light:

800x500mm cast iron bed plates

,

cast iron bed plates 800x500mm

,

CO cast iron bed plates

Machine Floor Bed Used Cast Iron T Slot Bed Plate



Our T-slotted cast iron floor plates have been supplied for years to overseas customers in the USA,
Europe, the Middle East, South Asia etc.. Their high quality is guaranteed and
prices are always under your economic budgets. Meanwhile, we are capable of arranging
international transportation by GP / OT containers or flat racks to deliver them to any seaport in the world

Product Name Flexible cast iron welding working platform T Slot base hole plate
Material High-strength cast iron, HT200-300
Specification 100*100~3000*8000 or customize
Surface Flat or V, T, straight-shaped slots and tapped holes, long holes, grid lines
Surface Treatment Hand-scraped, finish-milling or ground finish
Foundry Technology Sand casting or centrifugal casting
Molded Type Resin sand molding
Precision grade 0~3
Surface Hardness HB170-240


Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570



CO Machine Floor Bed Use 800x500mm Cast Iron Bed Plates 0

RFQ :

Q: How many identification items of surface plates include?

A: There are five identification items together about the surface plates: the appearance and surface quality, roughness of working
surface and sides, included angle of sides, contact point of scraping surface plates and the flatness of working surface.

Q: How to protect the cast iron surface plates from deformation?

A: In case of any deformation happen during the processing of lifting, must be sure the four wire ropes which steadily hoist the four sides of surface plate in same-length.

When installing, the cast iron adjustable mounts on every supporting pointes should be well adjusted in order to bear averaged force. Our professional specialists are in charge of debugging the surface plates until getting qualified precision grade.

When using, please put down carefully and it is not allowed to move the rough workpieces on surface plates in case of any
scratched, dented in places.

After using, please take down the workpieces in case that any deformation happens. When not in use, we need to clean the working surface, coat rust-proof oils, cover with rust-proof paper and package the surface plates with outer packing in order to protect the surface plates in well condition.
