Product Details:
Payment & Shipping Terms:
|
| Material: | Black Granite | Application: | High Precision Industry |
|---|---|---|---|
| Tolerance: | 00 Grade | HS Code: | 90179000 |
| Name: | Calibration Tools Granite Precision Surface Plate | Measure Method: | Manual |
| Optional Accessory: | Stand For Granite Surface Plate, Jack For Granite Surface Plate | ||
| High Light: | 1000 x1000 precision surface plate,granite precision surface plate calibration,00 grade granite surface plate calibration |
||

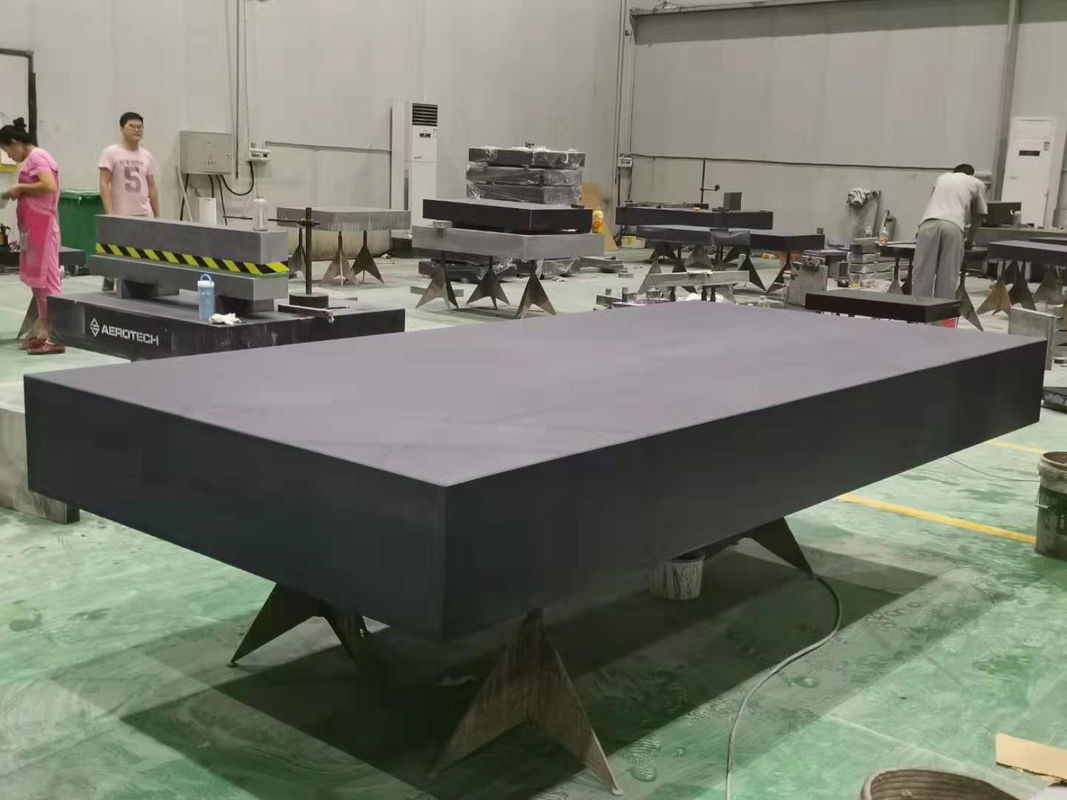

Calibration Tools Granite Precision Surface Plate
1. Adopted high quality "Jinan Qing" natrual mateirial of granite, granite surface plate is manufactured by mechanical processing and manual polishing
2. It dosen't only own the interest of black gloss, precise construction, and outstanding characters - nice stability, high strength and hardness, etc. But also it is no rust, acid & alkali-proof, no magnetization, nice abrasion resistance and Can keep stable at normal or high tempreture.
3. the main mineral ingredients of granite are pyroxene, anorthose, less olivine, black mica and less magnetite. Aging through hundreds of millions years, the granite can still retain even character, stable, high strength and hardness, and can keep high precision at Heave duty. It is suitable for industrial production and measuring works at laboratory.
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
HF
|
|
Model Number
|
HF-Granite
|
|
Place of Origin
|
Hebei, China
|
|
Material
|
Granite
|
|
Size
|
200x200mm -- 4000x8000mm
|
|
Accuracy
|
00, 0, 1, 2, 3
|
|
Machining
|
Fine grinding
|
|
Certificate
|
ISO9001
|
|
OEM and ODM
|
Acceptable
|
|
Accessory
|
stand, pad iron, ground anchor
|
|
Packaging
|
export standard
|
|
Standard
|
DIN/JIS/GB
|
Specification:
1.Specific Gravity(Proportion):3.30g/cm3 or 2970-3070kg/m2
2.Shore Hardness:>70Hs-80Hs
3.Tensile strength:211Kg/cm2
4.Compressive strength:254-254Mpa
5.Linear expansion Coefficient:4.61'10-6/ºC
6.Elastic Modulus:30-50Gpa
7.Water Absorptivity:≤0.13%
8.Flexible grinding capacity:1.27-1.47N/mm2
Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
|
Specification |
Weight (kgs) |
Precision Grade (μm) |
|||
|
000 |
00 |
0 |
1 |
||
|
300 × 200 × 50 |
17 |
1.5 |
3 |
6 |
12 |
|
300 × 300 × 50 |
19 |
1.5 |
3 |
6 |
12 |
|
400 × 300 × 70 |
25 |
1.5 |
3 |
6 |
12 |
|
400 × 400 × 70 |
48 |
2 |
3.5 |
6.5 |
13 |
|
630 × 400 × 100 |
76 |
2 |
3.5 |
7 |
14 |
|
630 × 630 × 100 |
155 |
2 |
4 |
8 |
16 |
|
800 × 500 × 130 |
156 |
2 |
4 |
8 |
16 |
|
1000 × 630 × 130 |
284 |
2.5 |
4.5 |
9 |
18 |
|
1000 × 750 × 150 |
338 |
2.5 |
5 |
9 |
18 |
|
1000 × 1000 × 150 |
450 |
2.5 |
5 |
10 |
20 |
|
1600 × 1000 × 200 |
963 |
3 |
6 |
12 |
24 |
|
2000 × 1000 × 200 |
1200 |
3.5 |
6.5 |
13 |
26 |
|
1600 × 1600 × 300 |
2312 |
3.5 |
6.5 |
13 |
26 |
|
2000 × 1600 × 300 |
2890 |
3.5 |
7 |
14 |
28 |
|
2500 × 1600 × 300 |
3612 |
4 |
8 |
16 |
32 |
|
3000 × 2000 × 500 |
9030 |
4.5 |
9 |
18 |
36 |
|
4000 × 2000 × 500 |
12040 |
5.5 |
11 |
22 |
44 |
|
6000 × 2000 × 700 |
25284 |
7.5 |
15 |
30 |
60 |
