Home ProductsGranite Machine Base

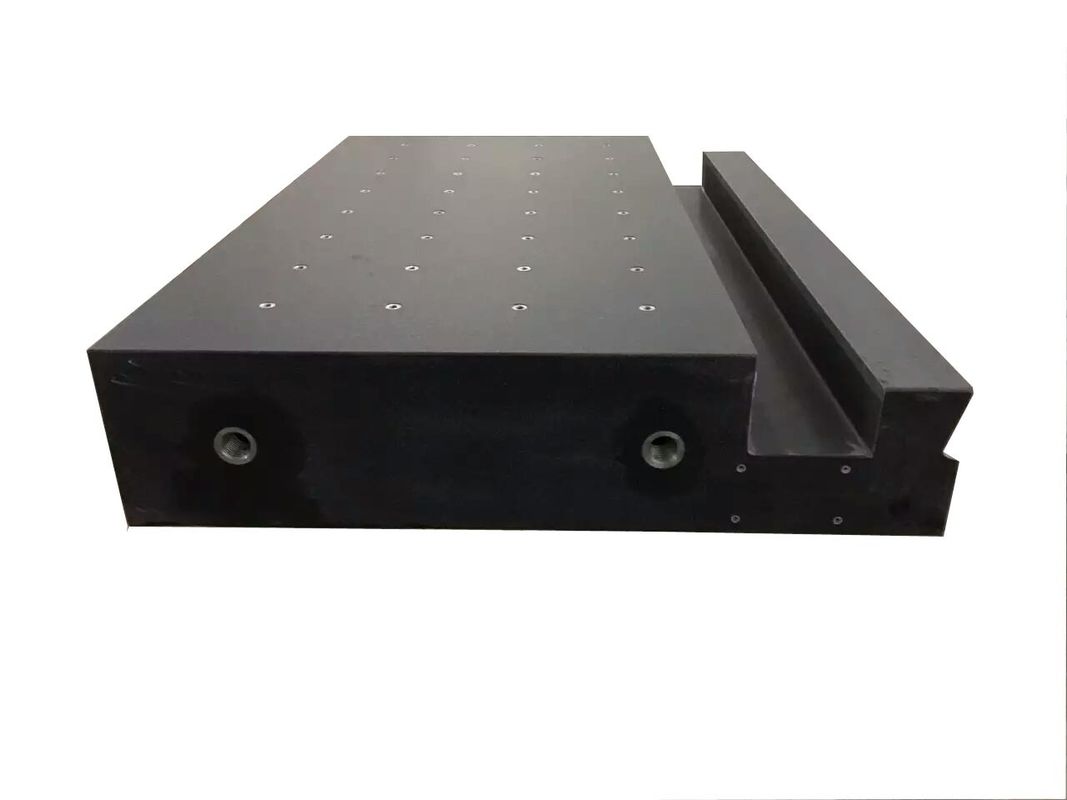

Jis Granite Machine Parts T Slots Cnc Granite Base

I'm Online Chat Now

Jis Granite Machine Parts T Slots Cnc Granite Base

Jis Granite Machine Parts T Slots Cnc Granite Base
Jis Granite Machine Parts T Slots Cnc Granite Base

Large Image :  Jis Granite Machine Parts T Slots Cnc Granite Base

Product Details:
Place of Origin: China
Brand Name: Willing
Certification: CO
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Application: High Precision Industry
Tolerance: 00 Grade HS Code: 9013900
Name: Granite Machinery Components Resolution: 0.01 Mm
Optional Accessory: Stand For Granite Surface Plate, Jack For Granite Surface Plate Standard: GB/T 20428-2006, DIN876, JIS
Surface: T-slots, Dovetail-shaped Slots, Holes, Etc Surface Treatment: Ground Finish
High Light:

jis granite machine parts

,

t slots cnc granite base

,

jis cnc granite base

Granite Guideways



Granite rail is used in CMM, drilling& milling machines for PC board,Laser machines and CNC as a guideway with Grade00 of DIN876/GB/JIS .



Physical Property of Jinan Black Granite:



Specific Gravity: 3.03 g/cm3
Shore Hardness: > 70Hs-80Hs
Tensile strength: 211Kg/cm2
Compressive Strength: 245-254Mpa
Linear Expansion Coefficient: 4.61´10--6/°C
Elastic Modulus: 30-50Gpa
Water Absorptivity: ≤0.13%



Black Granite Plates are in black color with bright, homogeneous structure,good stability, high hardness, anti-rust and chemical-resistance.



Material: Black Jinan granite, India Black Granite

Standard: GB/T 20428-2006, DIN876, JIS

Specification: The maximum workability is 10000mm in length, 8000mm in width and 800mm in height or customize (special size is acceptable following customers’ requirement)

Surface: T-slots, dovetail-shaped slots, holes, etc.

Hardness of the working surface: more than HS70

Surface treatment: ground finish

Precision grade: 00-1

Packaging: Export wooden box

Jis Granite Machine Parts T Slots Cnc Granite Base 0
