Product Details:
Payment & Shipping Terms:
|
| Material: | Grey Iron HT250 | Name: | Cast Iron T Slotted Bed Plates |
|---|---|---|---|
| Type: | Hollow Type | Flatness: | 3 Grade |
| Surface Finish: | Hand Scrap | Loading Weight: | As Clients Request |
| Warranty: | 1 Year | Casting Method: | Sand Casting |
| Surface Treatment: | Spray-Paint | Coating: | Alcohol, Graphite |
| High Light: | grinding resistance cast iron bed plates,grinding resistance t slotted bed plates,oem t slotted bed plates |
||

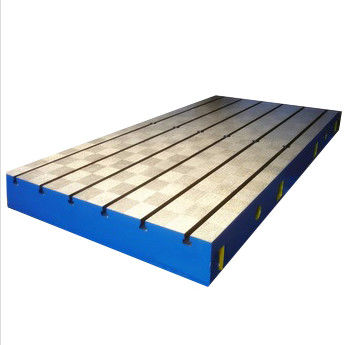

Cast Iron T Slotted Bed Plates
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
HENGHENG
|
|
Model Number
|
CI
|
|
Place of Origin
|
Hebei, China (Mainland)
|
|
Material
|
HT200-300, QT or steel
|
|
Size
|
200x200mm -- 4000x8000mm
|
|
Hardness
|
HB160-240
|
|
Accuracy
|
0, 1, 2, 3
|
|
Machining
|
CNC machining, precision grinding, hand scraping
|
|
Certificate
|
ISO9001
|
|
OEM and ODM
|
Acceptable
|
|
Accessory
|
stand, pad iron, ground anchor
|
|
Packaging
|
export standard
|
Usage:
(1) Suitable for various inspections and benchmark planes for accuracy measurement.
(2) Used widely as the measurement benchmark for machine tool inspection and to inspect the
dimension accuracy or running difference with the function of performing precise lineation.
(3) It is an essential measuring tool in machine manufacturing.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| Specification (mm) | Flatness tolerance (um) | |||
| Grade1 | Grade2 | Grade 3 | Finihs plane | |
| 400x400 | 12 | 24 | ||
| 600x400 | 14 | 28 | ||
| 800x500 | 16 | 32 | 80 | |
| 900x600 | 16 | 32 | 80 | |
| 1000x750 | 18 | 36 | 90 | |
| 1000x1000 | 20 | 39 | 96 | |
| 1500x1000 | 25 | 48 | 120 | |
| 2000x1000 | 26 | 52 | 129 | |
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||
