High Hardness Interior Engineers Cast Iron Bed Plates

I'm Online Chat Now

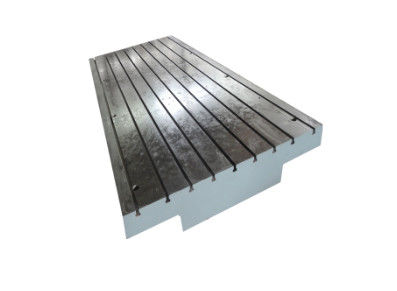

High Hardness Interior Engineers Cast Iron Bed Plates

High Hardness Interior Engineers Cast Iron Bed Plates
High Hardness Interior Engineers Cast Iron Bed Plates

Large Image :  High Hardness Interior Engineers Cast Iron Bed Plates

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: Grey Iron HT250 Name: Hardness Interior Engineers Surface Base Plate Iron Test Bed Plate
Density: 7.3-7.85 Tempering Temperature: 600-700 Degrees
Surface Finish: Machining Aging Treatment: Two Artificial Tempering Aging
Casting Method: Sand Casting Weight Error: 5%
Hardness: HB160-240 Standard: GB/T22095-2008
High Light:

interior engineers cast iron bed plates

,

high hardness cast iron bed plates

,

ht250 cast iron surface plate

Hardness Interior Engineers Surface Base Plate Iron Test Bed Plate



The cast iron platform is referred to as the platform, which is also called the cast iron plate. That is the basic plane reference measuring tool for workpiece inspection, scribing, debugging equipment, assembly, welding and riveting. Cast iron platforms are classified into 0, 1, 2 and 3 according to accuracy levels. Generally, Class 0, Class 1, and Class 2 plates are used as flat plates for inspection platforms. Platforms for Class 3 are used for scribing, assembly, welding, and riveting. They are widely used in machinery manufacturing, chemical engineering, hardware, aerospace, petroleum, automobile manufacturing, Instrumentation manufacturing and other industries.



Cast iron platform installation support accessories: platform brackets, adjustment horns, ground anchors, jacks, etc. When installing, it should be adjusted to the level and the load is distributed on each fulcrum. When the ambient temperature is used, vibration should be avoided.





Usage:

(1) Suitable for various inspections and benchmark planes for accuracy measurement.

(2) Used widely as the measurement benchmark for machine tool inspection and to inspect the

dimension accuracy or running difference with the function of performing precise lineation.

(3) It is an essential measuring tool in machine manufacturing.



Product name
Cast iron platform
Material
HT250-300 QT450-600
Tempering temperature
600-700 degrees
Place of Origin
Hebei,China
Roughness
Ra0.8-3.2
Density
7.3-7.85
Application
Machine made
Accuracy
1.2.3
Aging treatment
Two artificial tempering aging
Work surface treatment:
Grinding process





Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
  Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570



Q:Are you Manufacture?
A:Yes, we are manufacture. We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 7-10 days or 15-20 days.

Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing. We also can design tools for you as per your usage requirement.

Q:Could you send me all your catalogue and price list?
A:Yes, we can send you all our catalogue, but we couldn’t send you all pricelist because we have more than thousands of models, better to inform us your request of models you need.

Q:What is your advantages?
A: We are factory who produce our own brand “WARWICK” tools, we must guarantee our brand quality. Also, we have factory price and fast delivery.
