Din876 Granite Base For Linear Motorized Drive Positioning System

Large Image : Din876 Granite Base For Linear Motorized Drive Positioning System

Product Details:

Place of Origin:	China
Brand Name:	Willing
Certification:	CO

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	wooden
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100PC /30days

Contact Now

Detailed Product Description

Material:	Black Granite	Application:	Supply A Accuracy Surface Plate
Tolerance:	00 Grade	HS Code:	9013900
Name:	Granite Base For Linear Motorized Drive Positioning System	Resolution:	0.01 Mm
Standard:	GB/T 20428-2006, DIN876, JIS	Surface:	T-slots, Dovetail-shaped Slots, Holes, Etc
Surface Treatment:	Ground Finish	Roughness:	Ra1.6-Ra3.2
High Light:	din876 granite base , motorized drive positioning system granite base , din876 granite table base

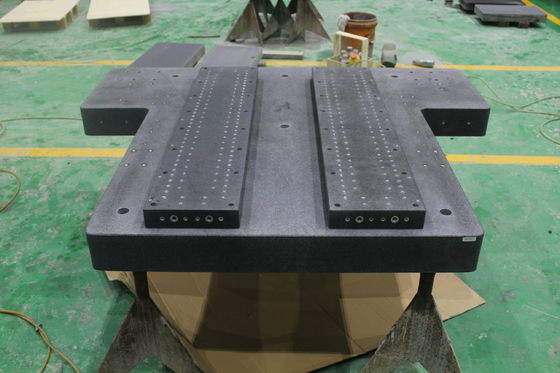

Granite base and columns integration structure for linear motorized driven positioning motion systems. The granite structure also the base of the dispenser. Slotted on the base drill holes with thread insert, and mounted 2 steel tracker rail on the granite base surface. This granite structure design specification: length: 2000mm, width: 1500mm, add the column thickness: 80mm, height: 800mm, weight: 550kg. Our company professional customizable all kinds of precision granite surface plates for motion stage 20 years. We could offer granite precision parts with best-quality, cost effect, and deliver accurately. Contact us now, got an up to 50% off quotation of granite plates.

Din876 Granite Base For Linear Motorized Drive Positioning System 0

FAQ

1.Can I order one piece granite surface plate?

if you want small size less than 800x800,it's would delivery by air express. mos times express cost is higher than granite cost.

so we don't suggest you buy one small size from us.

2. if your granite surface plate have certifications ?

Yes , each of granite surface plate has it's certification.if you need we can send sample for you

3. How much does granite surface plate weight??

(Lengthx width xHeight )mmx3x1000= weight granite kg

4. why dose granite have color steaks,spots and seams ?

Seams and color streaks occur occasionlly&naturally in granite stone. it is not uncommon for granite plates of large sizes to

include cosmetic non-conformities,which we endeavor to keep to a minimum. we can assure you that such visible disconformities are

carefully examined before,during and after the manufacturing process for actual or potential problems due to non-conforming

material. Our goal during this inspection process is to insure that we are following our own internal quality standards.

5. Can you put my company name and logo on your product ?

How should I clean my precision granite products

6.Why I get the granite accuracy is not good ?

Due to different temperature granite accuracy wil be change , before you use it,please put it in a uniform temperature space over

24hours, it's request temperature (20 ±5 )℃
