Product Details:
Payment & Shipping Terms:
|
| Material: | Black Granite | Application: | High Precision Industry |
|---|---|---|---|
| Tolerance: | 00 Grade | HS Code: | 90179000 |

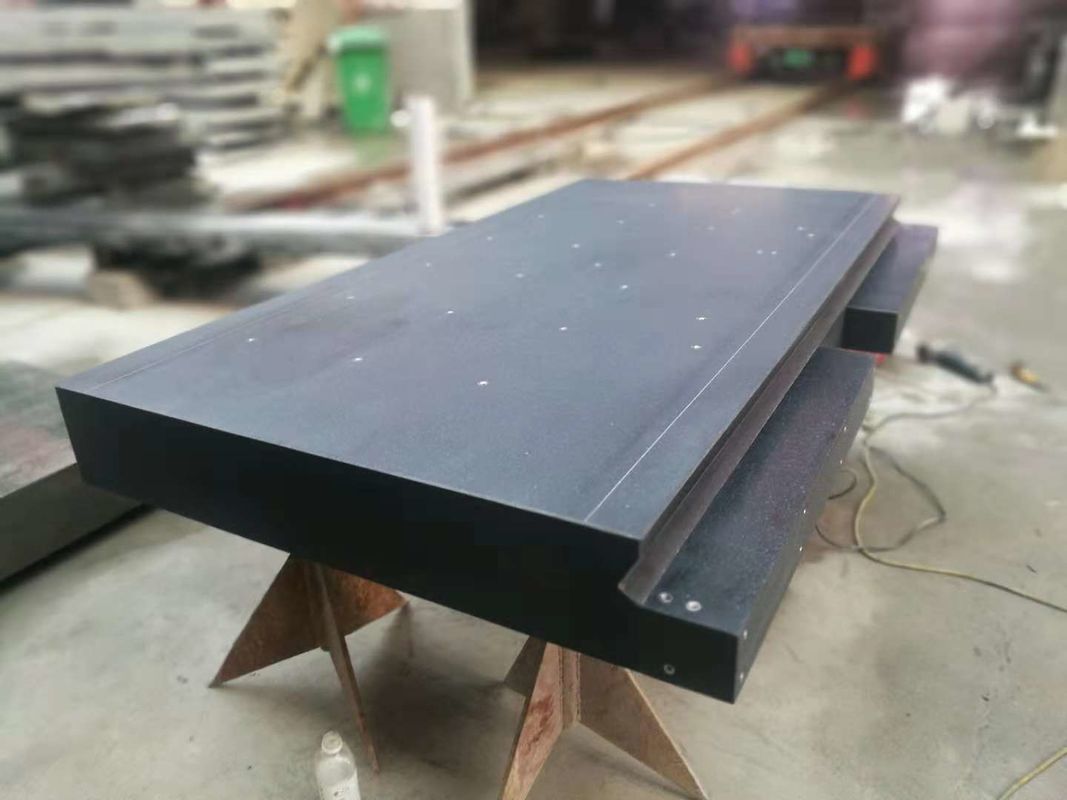

| Name: | 36 X 48 Machine Shop Granite Table Co Certified | Measure Method: | Manual |
| Optional Accessory: | Stand For Granite Surface Plate, Jack For Granite Surface Plate | Usage:: | Laboratory Measuring Tool |
| High Light: | machine shop 36 x 48 granite surface plate,36 x 48 machine shop granite table,co certified machine shop granite table |
||
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
HF
|
|
Model Number
|
HF-Granite
|
|
Place of Origin
|
Hebei, China
|
|
Material
|
Granite
|
|
Size
|
200x200mm -- 4000x8000mm
|
|
Accuracy
|
00, 0, 1, 2, 3
|
|
Machining
|
Fine grinding
|
|
Certificate
|
ISO9001
|
|
OEM and ODM
|
Acceptable
|
|
Accessory
|
stand, pad iron, ground anchor
|
|
Packaging
|
export standard
|
|
Standard
|
DIN/JIS/GB
|
Specification:
1. Specific Gravity(Proportion):3.30g/cm3 or 2970-3070kg/m2
2. Shore Hardness:>70Hs-80Hs
3. Tensile strength:211Kg/cm2
4. Compressive strength:254-254Mpa
5. Linear expansion Coefficient:4.61'10-6/ºC
6. Elastic Modulus:30-50Gpa
7. Water Absorptivity:≤0.13%
8. Flexible grinding capacity:1.27-1.47N/mm2
Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
|
Specification |
Weight (kgs) |
Precision Grade (μm) |
|||
|
000 |
00 |
0 |
1 |
||
|
300 × 200 × 50 |
17 |
1.5 |
3 |
6 |
12 |
|
300 × 300 × 50 |
19 |
1.5 |
3 |
6 |
12 |
|
400 × 300 × 70 |
25 |
1.5 |
3 |
6 |
12 |
|
400 × 400 × 70 |
48 |
2 |
3.5 |
6.5 |
13 |
|
630 × 400 × 100 |
76 |
2 |
3.5 |
7 |
14 |
|
630 × 630 × 100 |
155 |
2 |
4 |
8 |
16 |
|
800 × 500 × 130 |
156 |
2 |
4 |
8 |
16 |
|
1000 × 630 × 130 |
284 |
2.5 |
4.5 |
9 |
18 |
|
1000 × 750 × 150 |
338 |
2.5 |
5 |
9 |
18 |
|
1000 × 1000 × 150 |
450 |
2.5 |
5 |
10 |
20 |
|
1600 × 1000 × 200 |
963 |
3 |
6 |
12 |
24 |
|
2000 × 1000 × 200 |
1200 |
3.5 |
6.5 |
13 |
26 |
|
1600 × 1600 × 300 |
2312 |
3.5 |
6.5 |
13 |
26 |
|
2000 × 1600 × 300 |
2890 |
3.5 |
7 |
14 |
28 |
|
2500 × 1600 × 300 |
3612 |
4 |
8 |
16 |
32 |
|
3000 × 2000 × 500 |
9030 |
4.5 |
9 |
18 |
36 |
|
4000 × 2000 × 500 |
12040 |
5.5 |
11 |
22 |
44 |
|
6000 × 2000 × 700 |
25284 |
7.5 |
15 |
30 |
60 |
