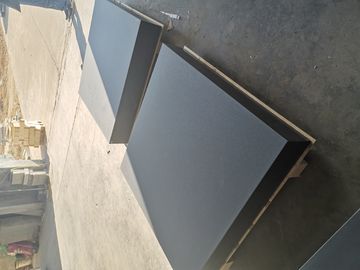

12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool

I'm Online Chat Now

12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool

12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool
12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool

Large Image :  12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool

Product Details:
Place of Origin: China
Brand Name: Willing
Certification: CO
Model Number: 1000 x2000
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Application: High Precision Industry
Tolerance: 00 Grade HS Code: 90179000
Name: 12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool Measure Method: Manual
Optional Accessory: Stand For Granite Surface Plate, Jack For Granite Surface Plate Usage:: Laboratory Measuring Tool
High Light:

36 x 48 granite surface plate

,

laboratory measuring 36 x 48 granite surface plate

,

12x12 granite surface plate

item
value
Place of Origin
China
Brand Name
HF
Model Number
HF-Granite
Place of Origin
Hebei, China
Material
Granite
Size
200x200mm -- 4000x8000mm
Accuracy
00, 0, 1, 2, 3
Machining
Fine grinding
Certificate
ISO9001
OEM and ODM
Acceptable
Accessory
stand, pad iron, ground anchor
Packaging
export standard
Standard
DIN/JIS/GB





Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:



Grade 000 =1x(1+d/1000)/μm

Grade 00 =2x(1+d/1000)/μm

Grade 0 =4x(1+d/1000)/μm

Grade 1 =8x(1+d/1000)/μm



(d is the length of the diagonal)

Specification
Length × Width × Thickness (mm)

Weight (kgs)

Precision Grade (μm)

000

00

0

1

300 × 200 × 50

17

1.5

3

6

12

300 × 300 × 50

19

1.5

3

6

12

400 × 300 × 70

25

1.5

3

6

12

400 × 400 × 70

48

2

3.5

6.5

13

630 × 400 × 100

76

2

3.5

7

14

630 × 630 × 100

155

2

4

8

16

800 × 500 × 130

156

2

4

8

16

1000 × 630 × 130

284

2.5

4.5

9

18

1000 × 750 × 150

338

2.5

5

9

18

1000 × 1000 × 150

450

2.5

5

10

20

1600 × 1000 × 200

963

3

6

12

24

2000 × 1000 × 200

1200

3.5

6.5

13

26

1600 × 1600 × 300

2312

3.5

6.5

13

26

2000 × 1600 × 300

2890

3.5

7

14

28

2500 × 1600 × 300

3612

4

8

16

32

3000 × 2000 × 500

9030

4.5

9

18

36

4000 × 2000 × 500

12040

5.5

11

22

44

6000 × 2000 × 700

25284

7.5

15

30

60



12x12 36 X 48 Granite Surface Plate For Laboratory Measuring Tool 0
