| Material: | Black Granite | Application: | High Precision Industry |
|---|---|---|---|
| Tolerance: | 00 Grade | HS Code: | 90179000 |
| Name: | 36 X 36 X 6 INCH GRANITE SURFACE PLATE GRADE B LEDGE 0 | Measure Method: | Manual |
| Optional Accessory: | Stand For Granite Surface Plate | Standard: | DIN876 II |
| Usage: | Laboratory Measuring Tool | ||
| High Light: | 36 x 36 granite surface plate,36x36 granite surface plate,granite surface plate grades b |
||

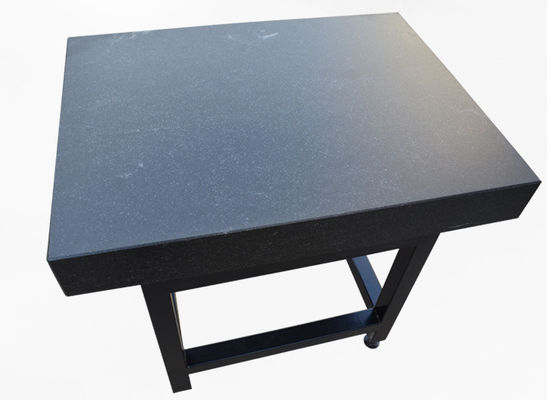

36 x 36 x 36 INCH GRANITE SURFACE PLATE GRADE B LEDGE 0
Granite Surface Plates are made from select granite with uniform distribution of light and dark constituents. In such granite, the minerals are evenly distributed, resulting in a homogenous appearance. The following are the representative properties of our granites :
Coefficient of Thermal Expansion
Texture : Fine
Specific Gravity : 3.08 g/cm3
Hardness : Scleroscope over 90
Modulus of Elasticity : 9.0 to 12.0 x 105kg/cm2
Moisture of absorption : Nil
Advantages:
• High quality material and precision machining process ensure product quality.
• A traceable QC system is worthy of your trust.
• Efficient warehouse and logistics management ensure your delivery time.
• A two-year warranty makes you without the worries behind.
Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
|
Specification |
Weight (kgs) |
Precision Grade (μm) |
|||
|
000 |
00 |
0 |
1 |
||
|
300 × 200 × 50 |
17 |
1.5 |
3 |
6 |
12 |
|
300 × 300 × 50 |
19 |
1.5 |
3 |
6 |
12 |
|
400 × 300 × 70 |
25 |
1.5 |
3 |
6 |
12 |
|
400 × 400 × 70 |
48 |
2 |
3.5 |
6.5 |
13 |
|
630 × 400 × 100 |
76 |
2 |
3.5 |
7 |
14 |
|
630 × 630 × 100 |
155 |
2 |
4 |
8 |
16 |
|
800 × 500 × 130 |
156 |
2 |
4 |
8 |
16 |
|
1000 × 630 × 130 |
284 |
2.5 |
4.5 |
9 |
18 |
|
1000 × 750 × 150 |
338 |
2.5 |
5 |
9 |
18 |
|
1000 × 1000 × 150 |
450 |
2.5 |
5 |
10 |
20 |
|
1600 × 1000 × 200 |
963 |
3 |
6 |
12 |
24 |
|
2000 × 1000 × 200 |
1200 |
3.5 |
6.5 |
13 |
26 |
|
1600 × 1600 × 300 |
2312 |
3.5 |
6.5 |
13 |
26 |
|
2000 × 1600 × 300 |
2890 |
3.5 |
7 |
14 |
28 |
|
2500 × 1600 × 300 |
3612 |
4 |
8 |
16 |
32 |
|
3000 × 2000 × 500 |
9030 |
4.5 |
9 |
18 |
36 |
|
4000 × 2000 × 500 |
12040 |
5.5 |
11 |
22 |
44 |
|
6000 × 2000 × 700 |
25284 |
7.5 |
15 |
30 |
60 |
