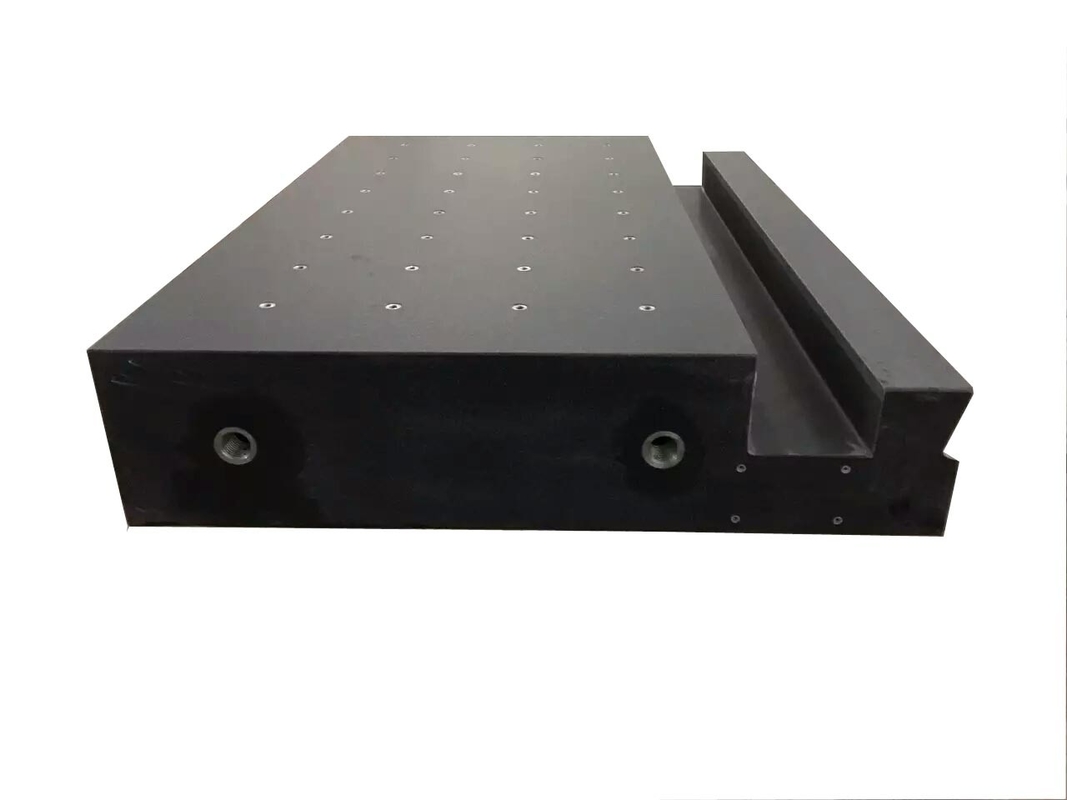

High Resolution Granite Table Base Laser Test Equipment Parts

I'm Online Chat Now

High Resolution Granite Table Base Laser Test Equipment Parts

High Resolution Granite Table Base Laser Test Equipment Parts
High Resolution Granite Table Base Laser Test Equipment Parts

Large Image :  High Resolution Granite Table Base Laser Test Equipment Parts

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CO
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Application: Supply A Accuracy Surface Plate
Tolerance: 00 Grade HS Code: 9013900
Name: Granite Laser Test Machine Parts Resolution: 0.01 Mm
Standard: GB/T 20428-2006, DIN876, JIS Surface: T-slots, Dovetail-shaped Slots, Holes, Etc
Surface Treatment: Ground Finish Roughness: Ra1.6-Ra3.2
High Light:

high resolution granite table base

,

laser test equipment granite table base

Granite Flotation Machine Base Parts

Material: Jinan Black

Specific Gravity: 3.07g/m3

Compressive Strength: 257MPa

Elastic Modulus: 1.37GPa

Linear Expansion Coefficient: 4.61x10-6/℃

Water Absorptivity: 0.12%

Shore Hardness: 79.9

2. Features: High-Precision, no rust, acid and alkali-resistant, no magnetized, no deform, good abrasion resistance etc.

3. Applicable area: These kind of granite parts are produced for Laser Test Machines.

4. We can manufacture the granite machinery parts by customers’ requirements. The largest part can be up to 8000×3000×600mm.


The final inspection is carried out with laser interferometers, autocollimation telescopes and electronic inclination scales of highest precision. According to your specifications, we insert appropriate threaded holes, T-slots or various metal parts into the granite body. We work with a high-strength two-component adhesive specially designed for bonding steel / granite. Below you will find a table with the dimensions and the maximum permissible tightening torques for the standard threaded inserts. The positioning accuracy of the threaded hole is +/-0.1 mm. The inserts are inserted approx. 0.5 - 1 mm below the surface.

High Resolution Granite Table Base Laser Test Equipment Parts 0
