Product Details:
Payment & Shipping Terms:
|

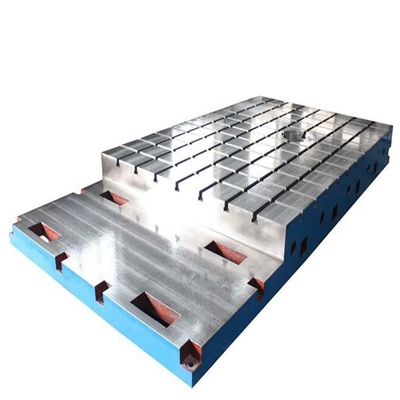

| Material: | Grey Iron HT250 | Name: | T Slot Cast Iron Floor Bed Plate Surface Table |
|---|---|---|---|
| Type: | Hollow Type | Flatness: | 2 Grade |
| Surface Finish: | Hand Scrap | Loading Weight: | As Clients Request |
| Casting Method: | Sand Casting | Surface Treatment: | Spray-Paint |
| Coating: | Alcohol, Graphite | Keyword: | Cast Iron Floor Plates |
| High Light: | grade 2 cast iron bed plates,grinding proof cast iron bed plates,grade 2 t slot bed plates |
||
T Slotted Cast Iron Floor Plate Are Specially Configured To Suit Customer Requirements. The Cast Iron Floor Plates Design, Dimensions, And Loading Capacity Of The Plate Can Be Tailored To Suit The Size And Weight Of The Work Pieces To Be Clamped.
The Number And Shape Of The Ribs Can Be Adjusted To Suit The Specified Loading Requirements. The Size Of The T-Slots In The Plates Is Determined By The Customer’S Requirements In Strength, Tensile And Compression.
The Cast Iron Floor Plates Size Range Is From 100mm*100mm To 3000mm*8000mm. Larger One Can Be Made According To The Drawing.
| name | t slotted cast iron floor plates profile 4000x2000mm |
| keyword | cast iron floor plates |
| Usage | Machines Measuring |
| Customized support | OEM |
| Size | Accept Custom |
| Color | Customize |
Cast Iron Floor Plates Product Specification
| Specification (mm) | Flatness tolerance (um) | |||
| Grade1 | Grade2 | Grade 3 | Finihs plane | |
| 400x400 | 12 | 24 | ||
| 600x400 | 14 | 28 | ||
| 800x500 | 16 | 32 | 80 | |
| 900x600 | 16 | 32 | 80 | |
| 1000x750 | 18 | 36 | 90 | |
| 1000x1000 | 20 | 39 | 96 | |
| 1500x1000 | 25 | 48 | 120 | |
| 2000x1000 | 26 | 52 | 129 | |
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||
