Granite Lab Surface Plate 1000 X 1000 Table Measuring Tools Inspection Table

I'm Online Chat Now

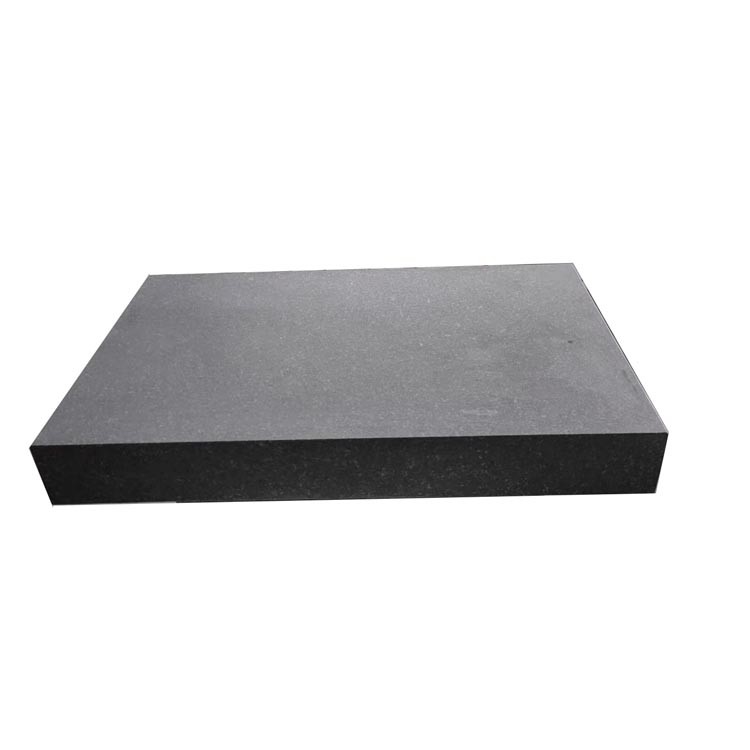

Granite Lab Surface Plate 1000 X 1000 Table Measuring Tools Inspection Table

Granite Lab Surface Plate 1000 X 1000  Table Measuring Tools Inspection Table
Granite Lab Surface Plate 1000 X 1000  Table Measuring Tools Inspection Table

Large Image :  Granite Lab Surface Plate 1000 X 1000 Table Measuring Tools Inspection Table

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CO
Model Number: custom-made
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Application: High Precision Industry
Tolerance: 00 Grade HS Code: 90179000
Name: Granite Lab Table Measuring Tools Granite Surface Plate Inspection Table Measure Method: Manual
Optional Accessory: Stand For Granite Surface Plate Standard: DIN876 II
Usage: Laboratory Measuring Tool
High Light:

surface plate 1000 x 1000 granite

,

lab surface plate 1000 x 1000

,

flat granite block 1000 x 1000

Granite Lab Table Measuring Tools Granite Surface Plate Inspection Table





Granite Surface plates are flat and plane surface used as a horizontal reference space for dimensional measurement, it’s a base for inspection, toolmaking, gauging, spotting, marking, and layout. They can be made from granite, metal, cast iron, or glass.

Serving as the benchmark for all measurements, surface plates play a pivotal role in quality checking and control. This surface is extremely flat that comes in Grade-00 to Grade-3 flatness accuracy substandard. Machine shops, all types of precise manufacturing, defense, automotive, and aerospace manufacturers require tight tolerances for machine shop tools and surface plates are widely used to assess out of accuracy or warped areas on manufactured parts.

As far as use is concerned, surface plates must be calibrated on a regular basis, at least once to twice a year, but most efficiently and for long-lasting use, it is to be calibrated every six months. Problems usually occur in certain areas having frequent use, so frequent calibration will make sure of chipping, warping, or wear has not observed. An uneven surface will impact the efficient functionality of the whole plate causing errors in measurements and the passing of checked defected parts.



Material Properties of Surface Plate : To make an ideal surface plate, the material must have the following requirements. Must have a high degree of rigidity Resistance to the wear and corrosion Free from warping that is from being Twisted

  • Meet DIN876, grade 00 is for inspection room or lab, grade 0 is for workshop.
  • Supplied with manufacturers inspection certificate
  • Optional accessory: stand for granite surface plate
    jack for granite surface plate

Advantages:

• High quality material and precision machining process ensure product quality.
A traceable QC system is worthy of your trust.
Efficient warehouse and logistics management ensure your delivery time.
A two-year warranty makes you without the worries behind.



Granite Surface Plate Calibration Procedure refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:



Grade 000 =1x(1+d/1000)/μm

Grade 00 =2x(1+d/1000)/μm

Grade 0 =4x(1+d/1000)/μm

Grade 1 =8x(1+d/1000)/μm



(d is the length of the diagonal)

Specification
Length × Width × Thickness (mm)

Weight (kgs)

Precision Grade (μm)

000

00

0

1

300 × 200 × 50

17

1.5

3

6

12

300 × 300 × 50

19

1.5

3

6

12

400 × 300 × 70

25

1.5

3

6

12

400 × 400 × 70

48

2

3.5

6.5

13

630 × 400 × 100

76

2

3.5

7

14

630 × 630 × 100

155

2

4

8

16

800 × 500 × 130

156

2

4

8

16

1000 × 630 × 130

284

2.5

4.5

9

18

1000 × 750 × 150

338

2.5

5

9

18

1000 × 1000 × 150

450

2.5

5

10

20

1600 × 1000 × 200

963

3

6

12

24

2000 × 1000 × 200

1200

3.5

6.5

13

26

1600 × 1600 × 300

2312

3.5

6.5

13

26

2000 × 1600 × 300

2890

3.5

7

14

28

2500 × 1600 × 300

3612

4

8

16

32

3000 × 2000 × 500

9030

4.5

9

18

36

4000 × 2000 × 500

12040

5.5

11

22

44

6000 × 2000 × 700

25284

7.5

15

30

60



Granite Lab Surface Plate 1000 X 1000  Table Measuring Tools Inspection Table 0
