Hard Stone Precision Surface Plate Rust Acid Proof Good Wear Resistance

Name: Hard Stone Precision Surface Plate Rust Acid Proof Good Wear Resistance
Brand: Willing
SKU: 1000 x 2000 mm
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

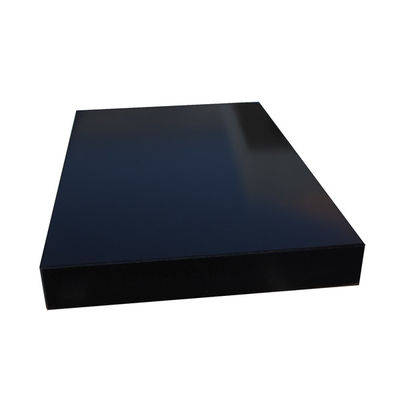

Large Image : Hard Stone Precision Surface Plate Rust Acid Proof Good Wear Resistance

Product Details:

Place of Origin:	China
Brand Name:	Willing
Model Number:	1000 x 2000 mm

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	wooden
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100PC /30days

Contact Now

Detailed Product Description

Material:	Black Granite	Color:	Black
Application:	Industry	Flatness:	00grade
Size:	2000 X 1000	Weight:	1500 Kgs
High Light:	flat granite surface plate , surface plate calibration

High Precision Flatness Measuring Stone Surface Plate Calibration 1000 x 2000 mm

Precision Surface Plate using granite gabbro
It is very and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
We can also make special mounts using square pipe.

Grade Measurement (mm)	Grade 00		Grade 0		Grade 1		Bearing	Mass (kg)
Grade Measurement (mm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	Code No.	Flatness (μm)	L1×L2 (mm)	Mass (kg)
300×300×75	BA101	2.0	BA201	4.0	BA301	8	240×240	21
450×300×100	BA102	2.0	BA202	4.5	BA302	9	390×240	41
500×500×100	BA103	2.5	BA203	5.0	BA303	10	420×420	75
600×450×100	BA104	2.5	BA204	5.0	BA304	10	500×370	81
600×600×125	BA105	2.5	BA205	5.0	BA305	10	500×500	135
750×500×125	BA106	3.0	BA206	5.5	BA306	11	630×420	141
1000×750×150	BA107	3.0	BA207	6.5	BA307	13	700×630	338
1000×1000×150	BA108	3.5	BA208	7.0	BA308	14	700×700	450
1500×1000×200	BA109	4.0	BA209	8.0	BA309	16	1100×700	900
2000×1000×250	BA110	4.5	BA210	9.5	BA310	19	1500×700	1500
2000×1500×300	BA111	5.0	BA211	10.0	BA311	20	1500×1000	2700
3000×1500×300	BA112	6.5	BA212
