Grey Iron T Slotted Floor Plate 2 Grade Flatness For Accuracy Measurement

I'm Online Chat Now

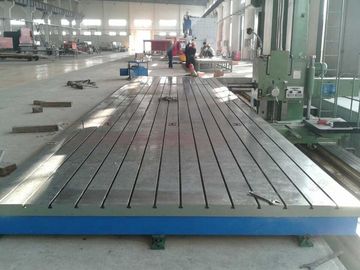

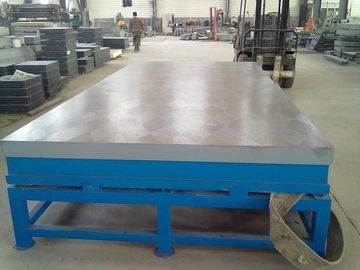

Grey Iron T Slotted Floor Plate 2 Grade Flatness For Accuracy Measurement

Grey Iron T Slotted Floor Plate 2 Grade Flatness  For Accuracy Measurement
Grey Iron T Slotted Floor Plate 2 Grade Flatness  For Accuracy Measurement Grey Iron T Slotted Floor Plate 2 Grade Flatness  For Accuracy Measurement

Large Image :  Grey Iron T Slotted Floor Plate 2 Grade Flatness For Accuracy Measurement

Product Details:
Place of Origin: China
Brand Name: Willing
Certification: CO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden
Delivery Time: 60 Days
Payment Terms: T/T, Western Union
Detailed Product Description
Material: Grey Iron Color: As Clients
Bearing Capacity: As Clients Request T Slot: Custom- Made
Flatness: 2 Grade Size: Clients Request
High Light:

t slot aluminum plate

,

aluminium t slot plate

Grey Iron T Slot Base Plate Calibration 2 Grade Flatness



Sspecification: from 200 x 100 up to 8000 x 3000mm

(special sspecifications can be made in accordance with buyer’s requirement).





Usage:

(1) Suitable for various inspections and benchmark planes for accuracy measurement.

(2) Used widely as the measurement benchmark for machine tool inspection and to inspect the

dimension accuracy or running difference with the function of performing precise lineation.

(3) It is an essential measuring tool in machine manufacturing.



Materials and Processing:

(1) The material of our surface plate/table is cast iron HT200-300

(2) Working surface hardness is HB170-240

(3) Low inaccuracy error and good in grinding resistance.



Precision:

According to the national standards measurement examination regulations execution,

respectively is 0,1,2,3, fine polish.

specification(Lx W)mm precision grade
  1 2 3
flatness tolerance (um)
1000X750   12.5 25 50
1000X1000   13.5 27 54
1000X1200   14 29 58
1000X1500   16 32 63
1000X2000   18.5 37 74
1500X2000   20 40 80
1500X2500   22.5 45 90
1500X3000   25 50 100
2000X2000   22 44 88
2000X3000   27 53 106
2000X4000   32 64 127
2000X5000   37 75 150
2000X6000   43 86 172
2000X7000   49 97 194
2000X8000   54.5 109 218
2500X3000   28.5 57 114
2500X4000   33 67 133
2500X5000   39 77 154
2500X6000   44 88 176
2500X7000   50 99 198
2500X8000   55 110 221
3000X3000   30.5 61 122
3000X4000   35 70 140
3000X5000   40 80 160
3000X6000   45 90.5 181
3000X7000   51 101 203
3000X8000   56 112.5 225
4000X4000   39 78 156
4000X5000   43 87 174
4000X6000   48 96.5 193
4000X7000   53 107 213.5
4000X8000   59 117

235



Grey Iron T Slotted Floor Plate 2 Grade Flatness  For Accuracy Measurement 0
