Measuring 1000 X 800mm Cast Iron Surface Plate

Name: Measuring 1000 X 800mm Cast Iron Surface Plate
Brand: Willing
SKU: 1000 x 800mm
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (150 reviews)

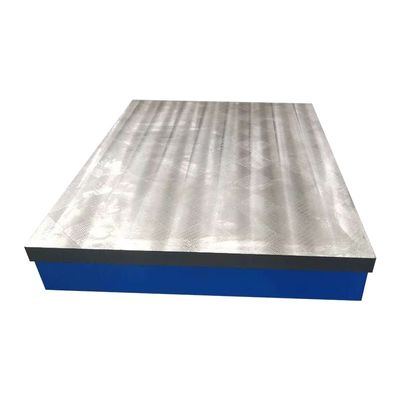

Large Image : Measuring 1000 X 800mm Cast Iron Surface Plate

Product Details:

Place of Origin:	China
Brand Name:	Willing
Certification:	CO
Model Number:	1000 x 800mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	wooden
Delivery Time:	60 Days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Material:	Grey Iron	Color:	Bule
Bearing Capacity:	As Clients Request	T Slot:	Custom- Made
Flatness:	2 Grade	Size:	Clients Request
Apply:	Supply A Level Surface	Weight:	600 Kgs
Specification:	Gg250	Type:	Hollow
High Light:	1000 x 800mm Cast Iron Surface Plate , Cast Iron Surface Plate 1000 x 800mm

High Wear Resistance Measuring Surface Cast Iron Surface Plates

Cast iron surface plates are Precisely finished by planing and hand scraping,Cast iron surface plates are Deep cross ribbed construction maintaining rigidity & accuracy, cast iron surface plate Accuracy to standard DIN876/1, GB/T22095-2008

Cast iron surface plates Materials and Processing:

(1) The material of our surface plate/table is cast iron HT200-350

(2) Working surface hardness is HB170-240

(3) Low inaccuracy error and good in grinding resistance.

Precision: According to the national standards measurement examination regulations execution respectively is 0,1,2

Specification (mm)	Flatness tolerance (um)
	Grade1	Grade2	Grade 3	Finihs plane
400x400	12	24
600x400	14	28
800x500	16	32	80
900x600	16	32	80
1000x750	18	36	90
1000x1000	20	39	96
1500x1000	25	48	120
2000x1000	26	52	129
2000x1500		56	140
2000x2000		60	152	230
2500x1500		68	168	248
3000x1000			174	248
3000x2000			184	275
3000x3000			210	300
4000x1000			210	300
4000x2000			219	310
4000x3000			240	360
5000x2000			255	375
5000x3000			287	420
6000x2000			293	430
6000x3000			308	460
8000x2000			370	520
8000x3000			382	570

Usage:

Cast Iron Surface Plates provide a precision reference for spotting, tool making, inspection of parts, checking accuracy of other surfaces and for many types of gauging and marking out operation

Service :

1.Guarantee:

A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.

B: Space parts will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

2.Commissioning:

1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.

3.Payment terms

- 30% by TT in advance

- 70% is paid before the shipment by TT

4.Delivery time: 30 days after the down payment is received

Tag:

Contact Person: Ms. Ada Yang

Tel: 86-18032726169

Fax: 86-317-2016816
