Large Size 3000x1500x300mm Precision Surface Plate

I'm Online Chat Now

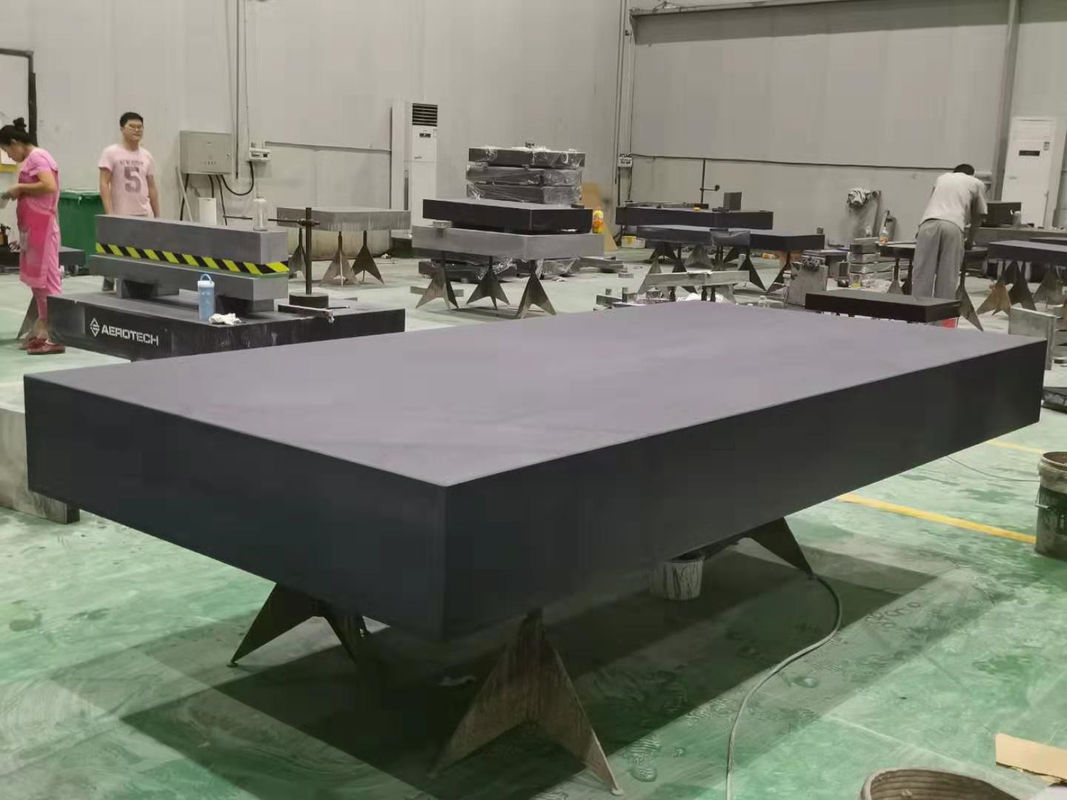

Large Size 3000x1500x300mm Precision Surface Plate

Large Size 3000x1500x300mm Precision Surface Plate
Large Size 3000x1500x300mm Precision Surface Plate

Large Image :  Large Size 3000x1500x300mm Precision Surface Plate

Product Details:
Place of Origin: China
Brand Name: Willing
Model Number: 3000 x 1500 mm
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Color: Black
Application: Industry Flatness: 00 Grade
Size: 3000 X 1500 Mm Weight: 120 Kgs
Name: Large Size 3000 X 1500 X 300 MM High Precision Granite Precision Surface Plate Standard: DIN/876 II
Shore Hardness: > 70Hs Water Absorptivity: ≤0.13%
High Light:

300mm precision surface plate

,

3000x1500 precision surface plate

 Large Size 3000 X 1500 X 300 MM High Precision Granite Precision Surface Plate



Granite is one of the best materials available to meet the ever changing and sophisticated applications demanding co-planarity, perpendicularity, parallelism, flatness and straightness. It is often chosen for its stability and high accuracy.

Precision Granite steel stands are manufactured to support the weight of the surface plate plus 50 pounds per square foot load.



  All plates from 48"x108" and larger are Machine Base Gray Granite. Smaller plates are Black Granite Surface Plates, to size of specifications other than standard, available on special order.

  Surface Plates, with the bolt screws, available on special order

  • Precision Surface Plate using granite gabbro
  • precision surface plate It is very  and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
  • precision surface plate In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
  • We can also make special mounts using square pipe.





Grade



Measurement (mm)

Grade 00 Grade 0 Grade 1 Bearing Mass
(kg)
Code No. Flatness
(μm)
Code No. Flatness
(μm)
Code No. Flatness
(μm)
L1×L2
(mm)
300×300×75 BA101 2.0 BA201 4.0 BA301 8 240×240 21
450×300×100 BA102 2.0 BA202 4.5 BA302 9 390×240 41
500×500×100 BA103 2.5 BA203 5.0 BA303 10 420×420 75
600×450×100 BA104 2.5 BA204 5.0 BA304 10 500×370 81
600×600×125 BA105 2.5 BA205 5.0 BA305 10 500×500 135
750×500×125 BA106 3.0 BA206 5.5 BA306 11 630×420 141
1000×750×150 BA107 3.0 BA207 6.5 BA307 13 700×630 338
1000×1000×150 BA108 3.5 BA208 7.0 BA308 14 700×700 450
1500×1000×200 BA109 4.0 BA209 8.0 BA309 16 1100×700 900
2000×1000×250 BA110 4.5 BA210 9.5 BA310 19 1500×700 1500
2000×1500×300 BA111 5.0 BA211 10.0 BA311 20 1500×1000 2700
3000×1500×300 BA112 6.5 BA212


Large Size 3000x1500x300mm Precision Surface Plate 0
