Precision Gauging 3000x2000mm Granite Surface Plate

I'm Online Chat Now

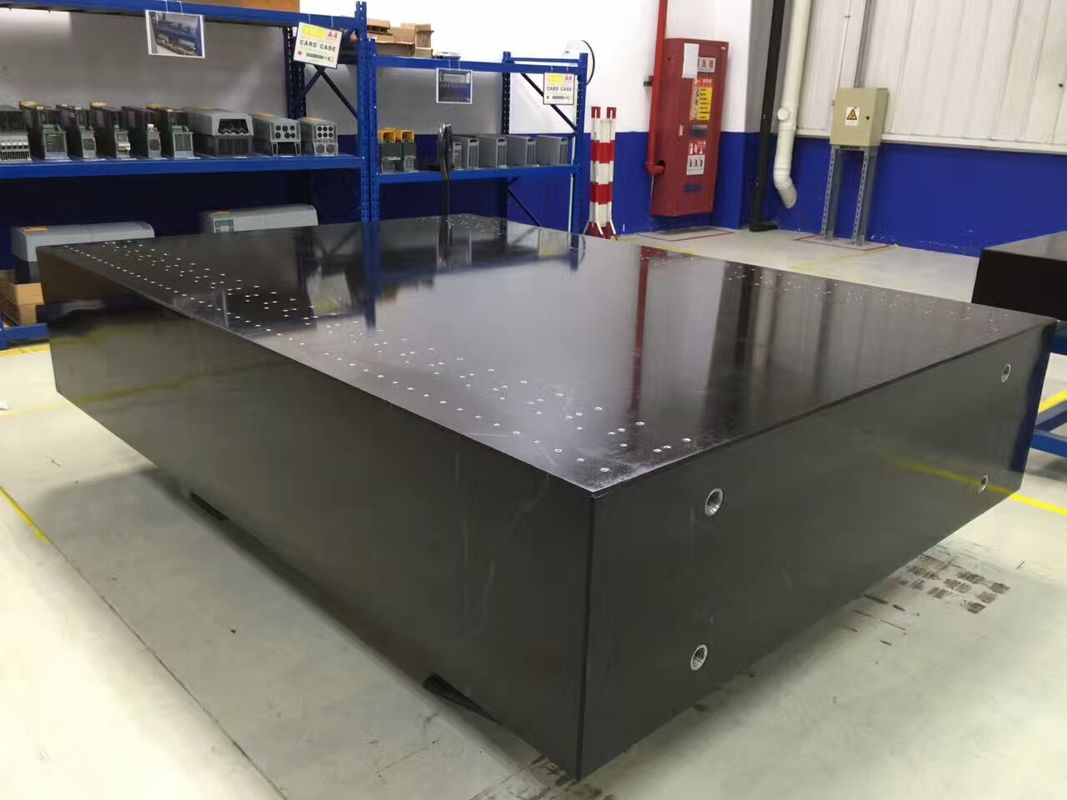

Precision Gauging 3000x2000mm Granite Surface Plate

Precision Gauging 3000x2000mm Granite Surface Plate
Precision Gauging 3000x2000mm Granite Surface Plate

Large Image :  Precision Gauging 3000x2000mm Granite Surface Plate

Product Details:
Place of Origin: China
Brand Name: Willing
Model Number: 3000x2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: wooden
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 100PC /30days
Detailed Product Description
Material: Black Granite Color: Black
Application: Industry Flatness: 00 Grade
Size: 3000 X 2000 Mm Weight: 9000 Kgs
Name: Precision Gauging Granite Precision Surface Plate Standard: DIN/876 II
Shore Hardness: > 70Hs Water Absorptivity: ≤0.13%
High Light:

3000x2000mm granite surface plate

,

3000x2000mm precision granite surface plate

Precision Gauging Granite Precision Surface Plate



This granite reference plate is used to measure objects, mostly in metal work, for flatness and squareness.



  • Precision Surface Plate using granite gabbro
  • It is very hard and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
  • In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
  • We can also make special mounts using square pipe



  All plates from 48"x108" and larger are Machine Base Gray Granite. Smaller plates are Black Granite Surface Plates, to size of specifications other than standard, available on special order.

  Surface Plates, with the bolt screws, available on special order



Granite surface plate No rust, no corrosion, relatively warp-free, no compensating hump when nicked, longer wear, smoother action, greater precision, non-magnetic, less care after commissioning, lower co-efficient of thermal expansion and non-glaring surface. These features make JASH one of the best granite surface plate manufacturers in the industry.





Grade



Measurement (mm)

Grade 00 Grade 0 Grade 1 Bearing Mass
(kg)
Code No. Flatness
(μm)
Code No. Flatness
(μm)
Code No. Flatness
(μm)
L1×L2
(mm)
300×300×75 BA101 2.0 BA201 4.0 BA301 8 240×240 21
450×300×100 BA102 2.0 BA202 4.5 BA302 9 390×240 41
500×500×100 BA103 2.5 BA203 5.0 BA303 10 420×420 75
600×450×100 BA104 2.5 BA204 5.0 BA304 10 500×370 81
600×600×125 BA105 2.5 BA205 5.0 BA305 10 500×500 135
750×500×125 BA106 3.0 BA206 5.5 BA306 11 630×420 141
1000×750×150 BA107 3.0 BA207 6.5 BA307 13 700×630 338
1000×1000×150 BA108 3.5 BA208 7.0 BA308 14 700×700 450
1500×1000×200 BA109 4.0 BA209 8.0 BA309 16 1100×700 900
2000×1000×250 BA110 4.5 BA210 9.5 BA310 19 1500×700 1500
2000×1500×300 BA111 5.0 BA211 10.0 BA311 20 1500×1000 2700
3000×1500×300 BA112 6.5 BA212


Precision Gauging 3000x2000mm Granite Surface Plate 0
