Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates

I'm Online Chat Now

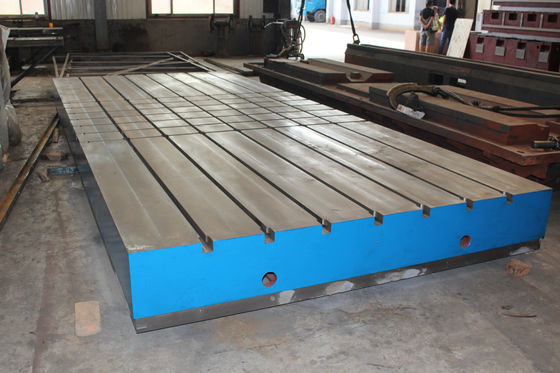

Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates

Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates
Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates

Large Image :  Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CO, FORM-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden
Delivery Time: 40days
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Detailed Product Description
Material: HT250 Name: 6000 X 2000 Mm Cast Iron Test T-Slotted Bed Plates
Type: Hollow Type Flatness: 2 Grade
Size: As Clients Request Surface Finish: Machining Finish
Hardness: 230 T Slot Size: M24
T Slot Distance: 250 Mm Bearing Capacity: 30tons
High Light:

6000 X 2000 T Slotted Bed Plates

,

6000 X 2000 Cast Iron Test Plates

Cast Iron T-Slotted Bed Plates Floor Plates Base Plate



Cast Iron T-Slotted bed Plates /Floor Plates are made of Grey Iron Casting from FG200 to FG300 confirming to IS:210. Casting shall be stree relieved after proof machining. Bed plates shall be manufactured with CNC Machines as to achive desired surface flatness and finish at machine itself. Bed Plates shall be manufactured in different sizes and with desired profiles viz T-slots, holes & squared slots as per customer requirement.





Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
    Grade2 Grade 3 Finihs plane
1000x750   36 90
1000x1000   39 96
1500x1000   48 120
2000x1000   52 129
2000x1500   56 140
2000x2000   60 152 230
2500x1500   68 168 248
3000x1000     174 248
3000x2000     184 275
3000x3000     210 300
4000x1000     210 300
4000x2000     219 310
4000x3000     240 360
5000x2000     255 375
5000x3000     287 420
6000x2000     293 430
6000x3000     308 460
8000x2000     370 520
8000x3000     382 570



Installation and adjustment

When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)



Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.



Cast Iron Test 6000 X 2000 Mm T Slotted Bed Plates 0
