| Material: | HT250 | Name: | Durable And Stability Precision Cast Iron T Slot Base Plate HT250 |
|---|---|---|---|
| Type: | Hollow Type | Flatness: | 2 Grade |
| Size: | As Clients Request | Surface Finish: | Machining Finish |
| Hardness: | 230 | T Slot Size: | M24 |
| T Slot Distance: | 250 Mm | Bearing Capacity: | 50tons |
| High Light: | HT250 T Slot Base Plate,OEM T Slot Base Plate,hollow t slot base plate |
||

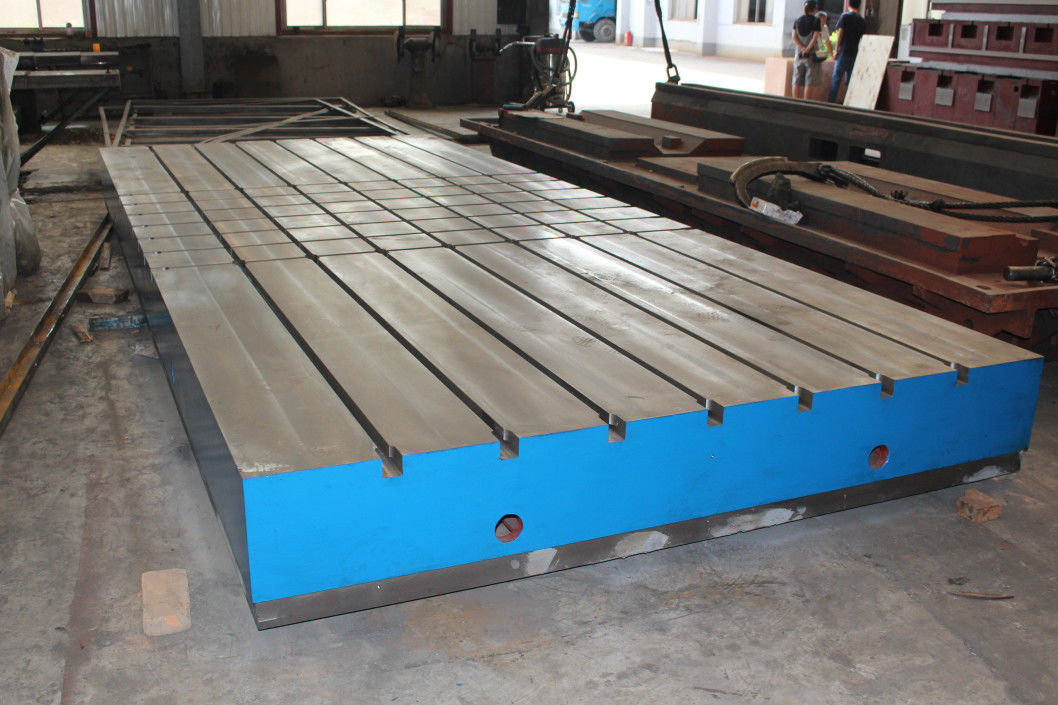

Durable And Stability Precision Cast Iron T Slot Base Plate HT250
Cast iron surface plates are also known as cast iron platform, the cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. The products are always made into ribbed plate or box-type; our company uses the scraping process to improve the precision of the products. Since the products are customized, so the customers can customize the size according to the actual needs. Plurality of cast iron surface plate can be spliced, once abrasion after use, the plate can be re-repair scratch to resume its accuracy.
Usage:
(1)Suitable for various inspections and benchmark planes for accuracy measurement.
(2)Used widely as the measurement benchmark for machine tool inspection and to inspect thedimension accuracy or running difference with the function of performing precise lineation.
(3)It is an essential measuring tool in machine manufacturing.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| Specification (mm) | Flatness tolerance (um) | |||
| Grade2 | Grade 3 | Finihs plane | ||
| 1000x750 | 36 | 90 | ||
| 1000x1000 | 39 | 96 | ||
| 1500x1000 | 48 | 120 | ||
| 2000x1000 | 52 | 129 | ||
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Notice for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
